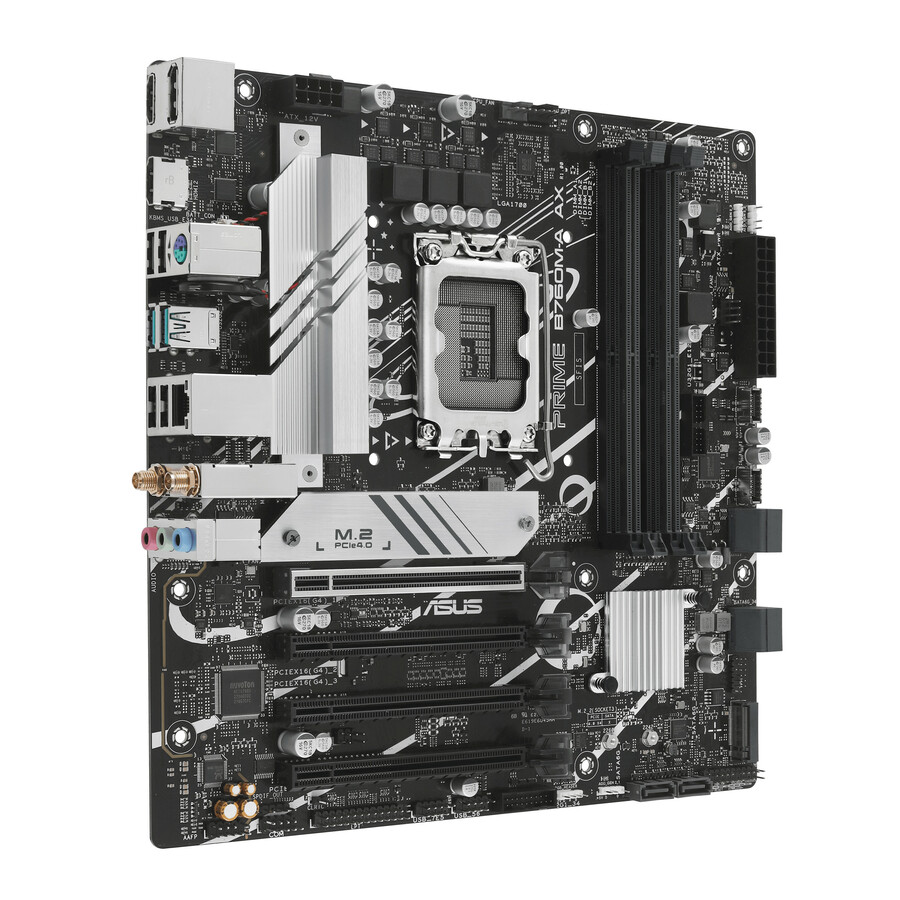

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
-
Intelligent Control
-
UEFI BIOS
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A AX is geared to cater to the demands of these high-core-count CPUs.
ProCool Connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors
- Core processors supported for enhanced, dependable system performance with maximum usability
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Celeron |
| Total Processor Supported | 1 |
| Processor Generation Supported | 13th Gen |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 5 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 2 |
| Total Number of Onboard USB P | 10 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 6 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| Onboard S/PDIF Header | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 4 |
| Total Number of PCI Express S | 4 |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard | PCI Express 4.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 6 |
