Stylish Outlook
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
High Availability

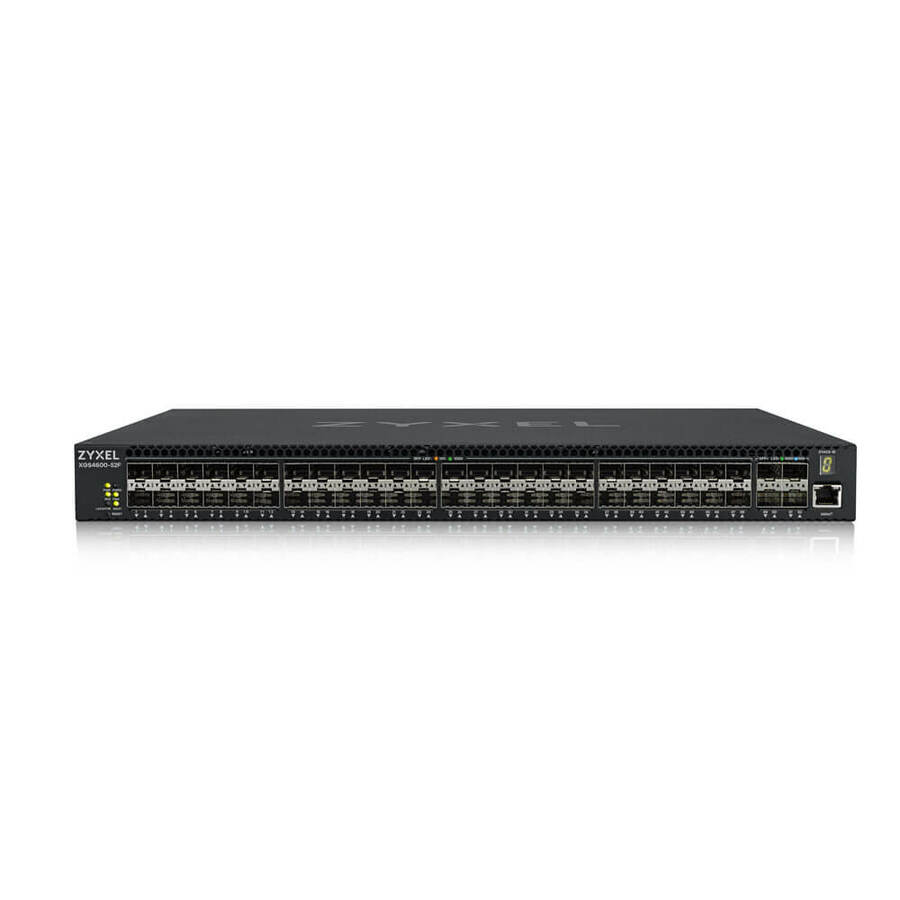

The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. The dynamic routing feature simplifies cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. Additionally, now we offer the advanced routing license supports RIPng and OSPFv3 for XGS4600 to support IPv6 routing environment.
High Resiliency
The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Robust Hardware
High-quality hardware design ensures stability and longevity for XGS4600 Series on your networks.
- High resiliency with redundant power supply units
- Provides high-bandwidth with true physical stacking of up to 4 units and 192 Gigabit ports
- Four built-in 10G SFP+ uplinks enable congestion-free, smooth data delivery for highbandwidth applications
- New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet
| Brand | |
|---|---|
| Brand | ZYXEL Communications Corp. |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 2 |
| Redundant Power Supply Suppor | Yes |
| Power Source | Power Supply |
| Power Consumption | 70.16 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 52 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Frequency | 60 Hz |
| Manufacturer | ZYXEL Communications Corp. |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 52.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP Slots | 48 |
| Number of SFP+ Slots | 4 |
| Misc Ports | |
|---|---|
| Stack Port | Yes |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
