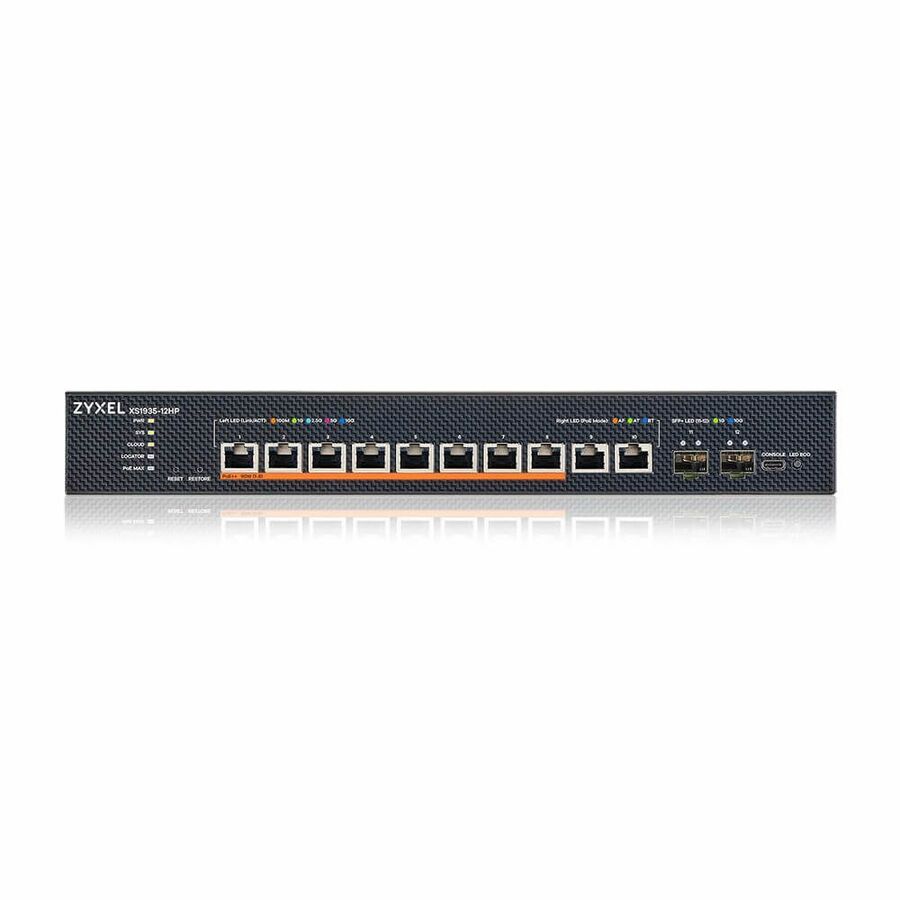

XS1935 Series
10/12-port 10G Multi-Gigabit Lite-L3 Smart Managed Switch
As businesses adopt cloud applications, AI-driven workloads, and highdefinition collaboration tools, network performance is critical. With WiFi 7 delivering speeds beyond 10 Gbps, the demand for faster, more efficient wired infrastructure is growing. Zyxel's XS1935 Series Switch is built for modern networks with future-ready technology. It includes three models non-PoE, PoE, and fiber each featuring ultra-high-speed downlink and uplink up to 10 Gigabit. Also, the smart fan design delivers near silent and stable Multi-Gig 10G operation.
Benefits | Unlock the Future of Networking with 10G Multi-Gig Switches
A 10G Multi-Gig switch provides the flexibility to support 100M, 1G, 2.5G, 5G, and 10G connections, allowing businesses to upgrade their network gradually without overhauling their entire infrastructure. This ensures that high-performance devices such as servers, NAS, workstations, and next-gen WiFi 7 access points can operate at their full potential without bottlenecks.
- Supports Multi-Gig speeds up to 10G/5G/2.5G/1G/100M
- PoE model supports 802.3bt (90W/port), with high PoE availability up to 400W
- NebulaFlex allows you to switch between standalone and license-free Nebula cloud management flexibly
- Features with rich L2 functions and L3 static routing capability
- Colored speed indicators and LED ECO switch are designs with usability in mind
Superior PoE paves the way for high performance WiFi 7 APs
The XS1935-12HP is a reliable Multi-Gig backhaul solution for our WiFi 7 family of access points with 2.5GbE or higher uplinks, ensuring that WiFi 7 performance is not bottlenecked by wired limitations. Its built-in 10Gbps capability makes it especially ideal for our enterprisegrade WBE660S WiFi 7 access point, which features a 10GbE uplink to deliver ultra-fast wired connectivity for data-intensive operations and modern workflows. With support for PoE++ delivering up to 90W per port and a total PoE budget of up to 400W, the XS1935-12HP can flexibly and efficiently power devices such as cameras, video conferencing equipment, smart IoT devices, thin clients, and more.
Trustworthy aggregation switch for agile network expansion
With ten (10) SFP+ fiber ports and advanced features, the XS1935-12F fiber model provides high-bandwidth backbone connectivity for multiple access switches, such as the XGS1935 (a Gigabit switch with 10G uplinks), offering flexible support for diverse network infrastructure demands. It delivers a cost-effective and scalable solution for building a high-bandwidth network backbone, especially suited for SMBs with 100 to 200 users.
Smart managed switch design inside and out
The smart switch XS1935 series is designed with intuitive features in both hardware and software. The 5-color LED design can instantly differentiate ports by speed, as well as the ECO button can turn off the Ethernet port LEDs for distraction free operation. SMB features such as VLAN, enhanced QoS, Link Aggregation, IPv6 and DoS prevention along with IPv4/ IPv6 Layer 3 static routing all can be configured through its user-friendly web interface without learning any complex command line interface (CLI).
- Ethernet Switch supports network continuity by maintaining data transmission during operation
- Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
- Features 10 networking ports to establish a local wired network or extend connectivity within an existing layout
- AC power source provides required electrical input for normal device functionality
- Layer 3 switching support enables structured traffic management without altering established network architecture
- Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
- Management capability enables control over network setup and configuration according to operational requirements
- 10 Gigabit Ethernet supports increased network throughput for business network connectivity
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
| Brand | |
|---|---|
| Brand | ZYXEL Communications Corp. |
| Power & Battery | |
|---|---|
| PoE Budget | 400 W |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Power Consumption | 511.60 W |
| Networking & Connectivity | |
|---|---|
| Switching Capacity | 30 GB/s |
| Switch Management Type | Smart Managed |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 10 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| AI-powered | Yes |
| Manageable | Yes |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Frequency | 60 Hz |
| MTBF | 261963 Hour |
| Manufacturer | ZYXEL Communications Corp. |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
