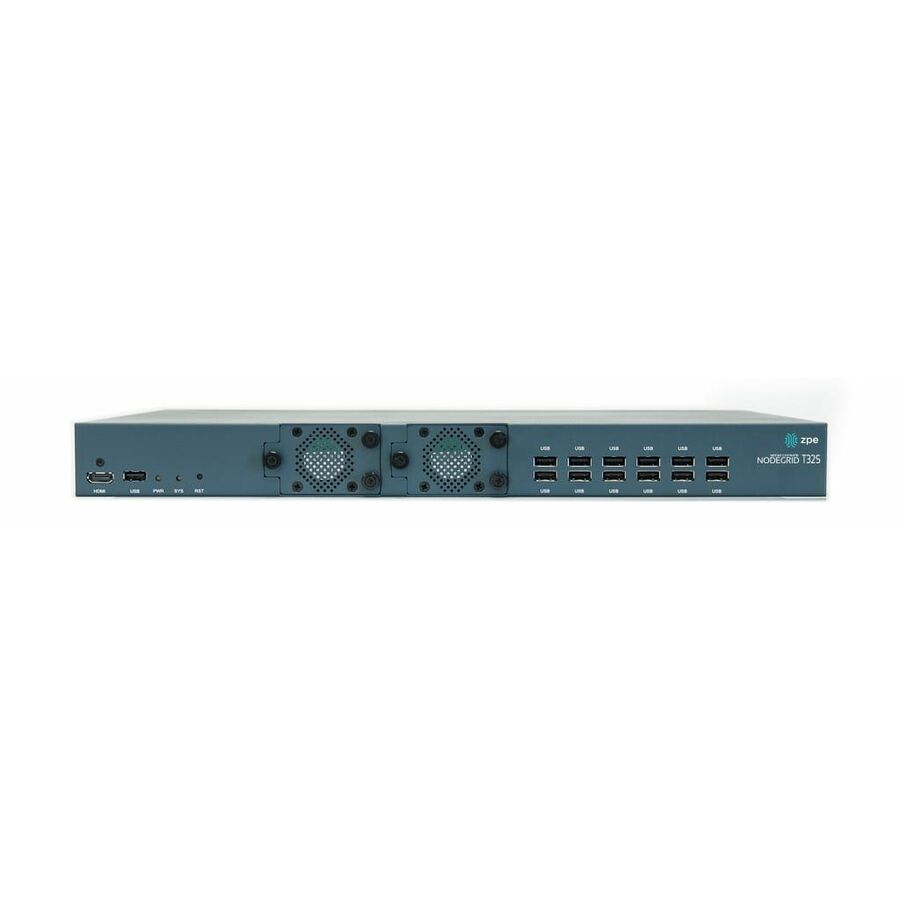

NodeGrid Serial Console is the data center's next generation of serial console server, providing built-in auto-switching capabilities and USB connectivity for next-gen IT solutions.
NodeGrid Serial Console S Series is available in 16, 32, and 48 port configurations. NodeGrid S Series Serial Consoles detect and reconfigure serial device pin-outs on-the-fly, eliminating the need for expensive dongles and cumbersome adapters.
Doing a serial console refresh? Leave existing cabling in-tact and simply replace legacy units with the NodeGrid Serial Console. NodeGrid saves setup and configuration time with legacy serial cable support. NodeGrid S Series Serial Consoles cut cabling costs while granting the freedom to access and manage new deployments based on current pin-outs.
NodeGrid Serial Console S Series is available in 16, 32, and 48 port configurations. NodeGrid S Series Serial Consoles detect and reconfigure serial device pin-outs on-the-fly, eliminating the need for expensive dongles and cumbersome adapters.
Doing a serial console refresh? Leave existing cabling in-tact and simply replace legacy units with the NodeGrid Serial Console. NodeGrid saves setup and configuration time with legacy serial cable support. NodeGrid S Series Serial Consoles cut cabling costs while granting the freedom to access and manage new deployments based on current pin-outs.
| Brand | |
|---|---|
| Brand | ZPE Systems |
| Memory / RAM | |
|---|---|
| Standard Memory | 3.91 GB |
| Memory Technology | DDR3 SDRAM |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100V AC to 240V AC |
| Input Voltage | 230 V AC |
| Power Consumption | 45 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 14 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Manufacturer | ZPE Systems, Inc |
| Device Type | Console Server |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Misc Ports | |
|---|---|
| Management Port | Yes |
| Serial Port | Yes |
| Number of Serial Ports | 32 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
