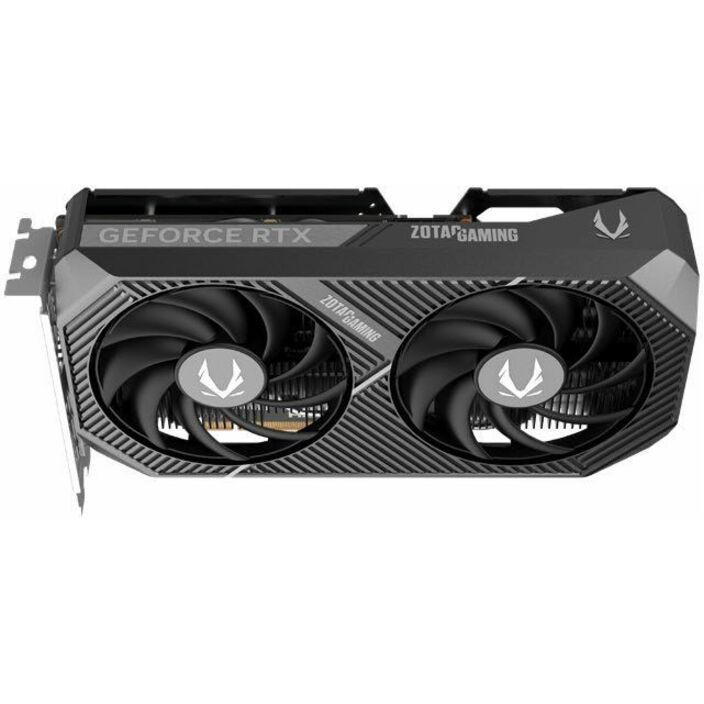

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC is a compact graphics card powered by NVIDIA's cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.
- NVIDIA Blackwell Architecture
- 5th Generation Tensor cores
- 4th Generation RT cores
- NVIDIA DLSS 4
- Game Ready and NVIDIA Studio Drivers
- NVIDIA® GeForce Experience™
- NVIDIA Broadcast, NVIDIA G-SYNC®
- 8GB GDDR7 graphics memory
- Dual 90mm BladeLink Fans
- ZOTAC GAMING FireStorm Utility
- SFF-Ready compact footprint
- Metal Backplate
| Brand | |
|---|---|
| Brand | Zotac USA Inc |
| GPU / Graphics | |
|---|---|
| GPU Boost Clock | 2.53 GHz |
| CUDA Cores | 3840 |
| Bus Width | 128 bit |
| API Supported | OpenGL 4.6 |
| Number of Monitors Supported | 4 |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Memory Technology | GDDR7 |
| Memory Clock Speed | 1.75 GHz |
| Screen / Display | |
|---|---|
| Maximum Digital Display Resol | 7680 x 4320 |
| Power & Battery | |
|---|---|
| Power Supply Wattage | 550 W |
| Power Connector | 1x 8-pin |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Slot Space Required | Dual |
| General Features | |
|---|---|
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 5060 |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| AI-powered | Yes |
| Cooler Type | Fan Cooler |
| Manufacturer | Zotac USA Inc |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 5.0 x8 |
| Miscellaneous | |
|---|---|
| Product Name | GeForce RTX 5060 Twin Edge OC Graphic Card |
