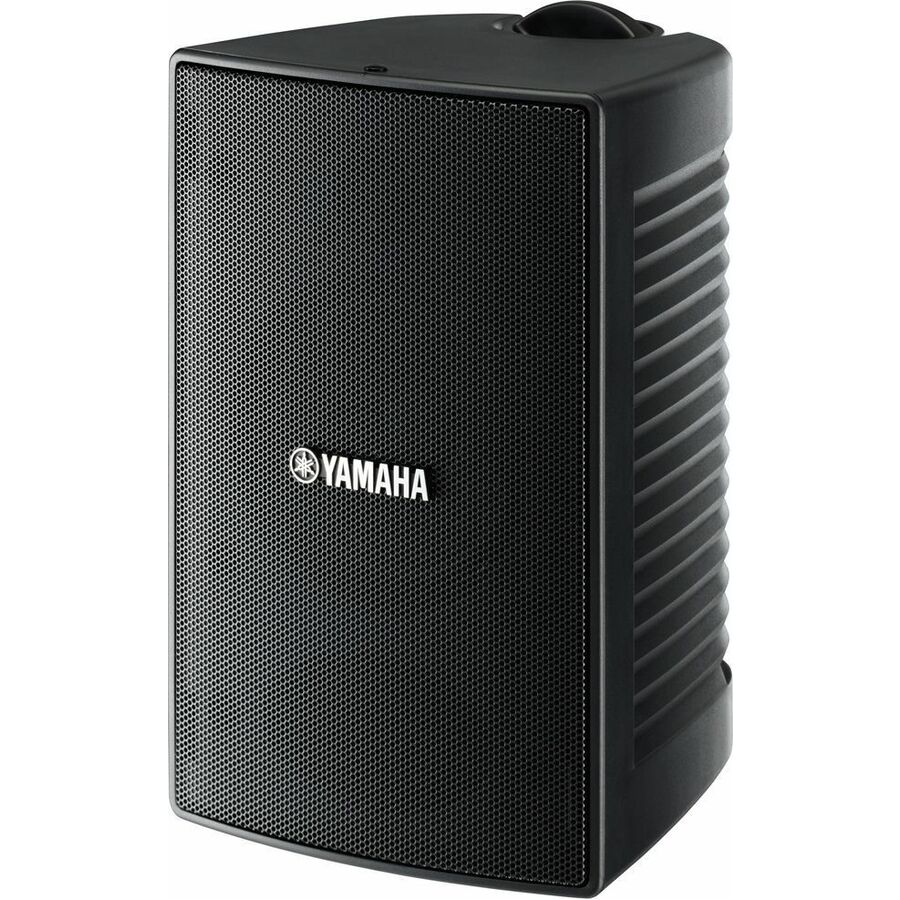

Easily adaptable to virtually any environment with its sleek, compact and functional design
The VS Series' smart and compact construction makes them well suited to locations where interior design is a consideration. Black and white models are available to choose from to match your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, allowing them to be used outdoors under cover.
Internal transformer allows operation in 70V or 100V distributed sound systems
Tap selector switch is located on the rear panel to select the power tap of 70V/100V line distributed system or 8Ω sound system. The setting can be easily adjusted by rotating the tap selector with a screwdriver. The terminals and tap selector can be protected using the supplied cover.
Flexible setting of the speakers with the dedicated U-brackets
The speakers are supplied with dedicated, color-matched brackets for fast and easy installation. The brackets can be set either horizontally or vertically, depending on where you want to mount the speakers.
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- The 2-way Indoor/Outdoor speakers with the 60 W power handling work terrifically
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear low subs and soaring vocals with a frequency range of sound from 100 Hz-20 kHz
- Handles up to 15 W of RMS power
- 4" woofer driver size allows better stereo imaging with maximum sound feasibility
- 1" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Delivers reliable sound with 20 kHz maximum frequency response
- 88 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- Flexible feature for better reliance and usability
| Brand | |
|---|---|
| Brand | Yamaha Corporation |
| Audio | |
|---|---|
| Speaker Installation | Indoor/Outdoor |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 100 Hz |
| Impedance | 8 Ohm |
| RMS Output Power | 15 W |
| Tweeter Driver Material | Dome |
| Woofer Driver Material | Cone |
| Crossover Type | 2-way |
| Sensitivity | 88 dB |
| PMPO Output Power | 60 W |
| Tweeter Driver Size | 1" |
| Woofer Driver Size | 4" |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface Mount |
| General Features | |
|---|---|
| Durability | Splash Proof |
| Manufacturer | Yamaha Corporation |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IPX3 |
