10-Gigabit/Multi-Gigabit switches for flexible deployment in high-capacity networks Enhancing backbone networks has become crucial for businesses, concert halls, and other installations due to the rising demand for high-quality video and audio with low latency. By introducing switches that support 10-Gigabit/Multi-Gigabit Ethernet, our new lineup creates an ideal environment for backbone networks requiring high speeds, capacities, and capabilities. These new L3 intelligent switches support systems handling increased media traffic across multiple segments, while our L2 switches are perfect for transmitting single-segment audio and video media. Like our other existing products, this expanded lineup is also supported by Yamaha LAN Monitor and includes a range of features optimized for Dante systems.

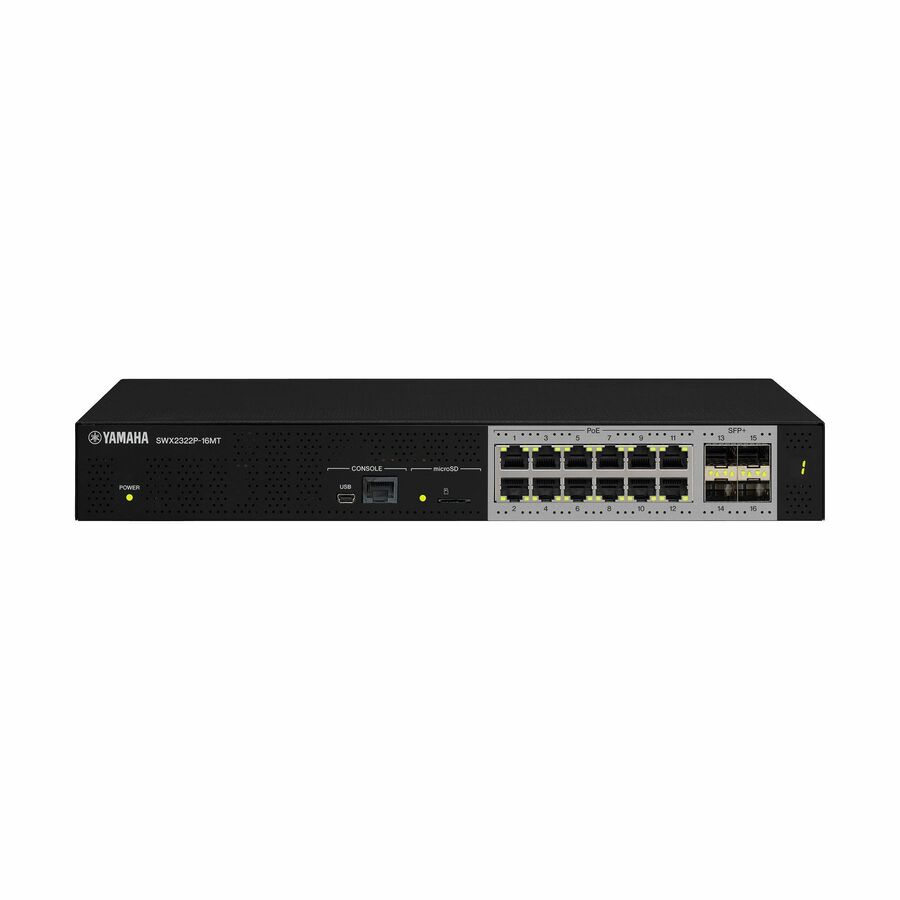

- SWX2322P-16MT L2 Switch
- L2 Intelligent PoE++ switch with 16 ports
- 12 multi-gigabit ports (100 M/1 G/2.5 G/5 G/10 G) with PoE++ and 4 SFP+ ports
- Built-in RADIUS server for advanced security management
- IEEE 802.3bt compliant with PoE++ supplying up to 90 W per port (Total: 250 W)
- Supports PTPv2 TC (Transparent Clock)
| Brand | |
|---|---|
| Brand | Yamaha Corporation |
| Power & Battery | |
|---|---|
| PoE Budget | 250 W |
| Input Voltage | 230 V AC |
| Power Source | AC |
| Power Consumption | 385 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-SR/LR |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 12 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1.25 GB/s |
| Frequency | 60 Hz |
| Manufacturer | Yamaha Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x RJ-45 Console Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
