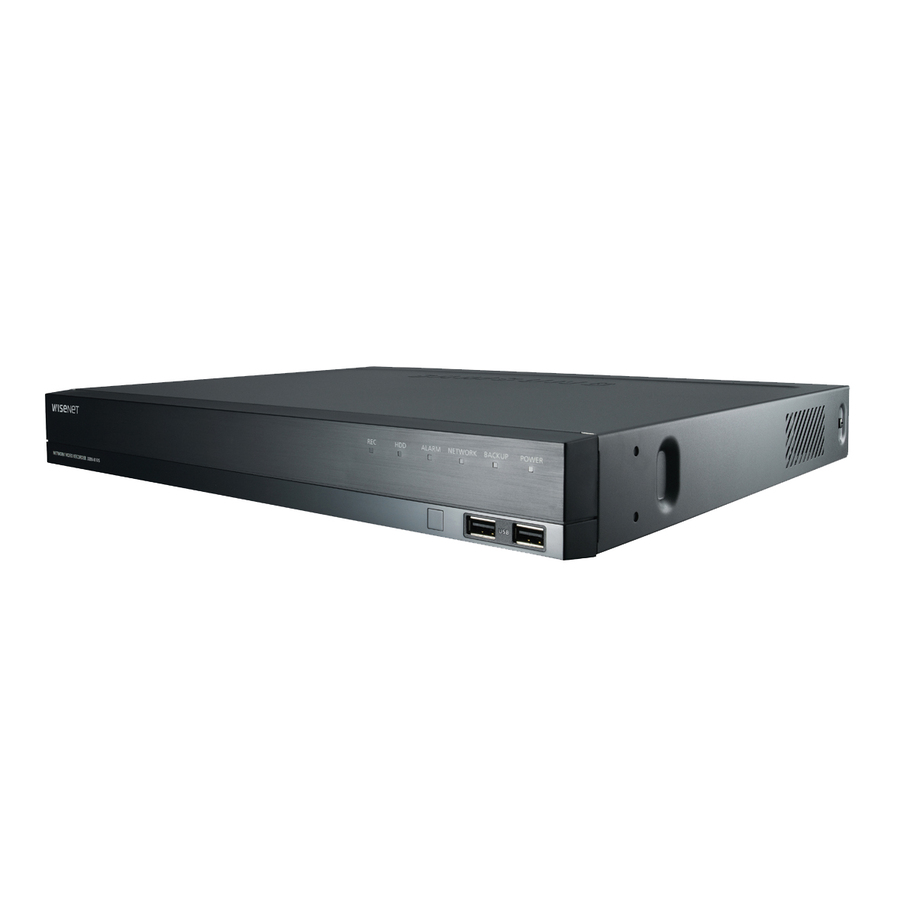

Hanwha's XRN-820 is an 8K NVR (Intel-based), supporting 8 channels with 8 PoE/PoE+ ports (PoE Budget 100W), H265,H264, MJPEG compression support. Supports up to 2 fixed internal SATA HDDs (6TB max per HDD), ARB (Automatic Recovery Backup), 100 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, maximum resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (plugin-free), AI search (Wisenet AI cameras only), QR Code for mobile app.
- Up to 8 channels, Supports up to 32 megapixel camera resolution
- 100Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 2 internal HDDs (12TB)
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
| Brand | |
|---|---|
| Brand | Hanwha Group |
| Storage | |
|---|---|
| Hard Drive Capacity | 12 TB |
| Screen / Display | |
|---|---|
| Maximum Resolution | 32MP |
| Power & Battery | |
|---|---|
| Power Consumption | 160 W |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Camera / Webcam | |
|---|---|
| HD Recording | Yes |
| Recording Formats | 8K |
| Maximum Frame Rate | 480 fps |
| Audio | |
|---|---|
| Total Number of Channels | 8 |
| General Features | |
|---|---|
| System Components | Network Video Recorder |
| Remote Management | Yes |
| Video Formats | Motion JPEG |
| Manufacturer | Hanwha Group |
| Video Ports | |
|---|---|
| Number of VGA Out | 1 |
