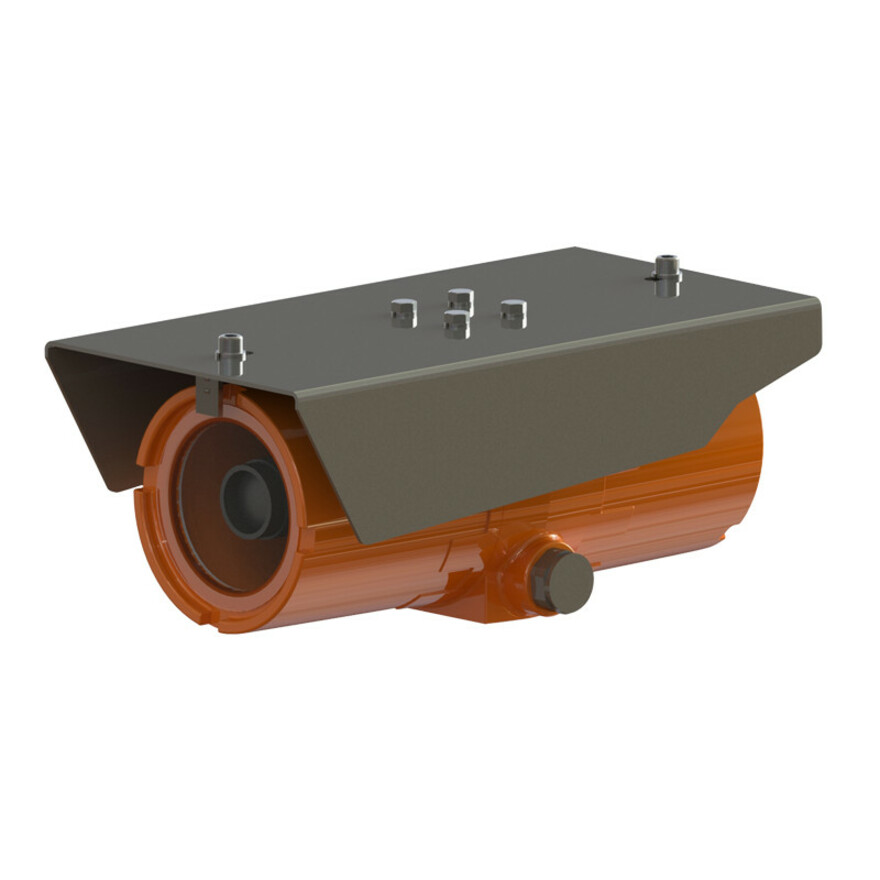

Explosion proof solution using the PNB-A9001 AI camera for false alarm reduction, object classification, and feature extraction with easy forensic review. The camera provides 8MP resolution @ 30fps. Manual varifocal 3.9-10mm f1.5 i-CS Lens with simple focus. The camera system is powered with PoE+, and supports an operating temperature range of -40°C ~ +55°C (-40°F ~ +131°F). NEMA type 4x, IP66, FM (Factory Mutual), cLCus C1/D1 certifications.
- 8Mp @ 30fps
- 3.9mm ~ 10mm f1.5 i-CS Lens with simple focus
- True Day & Night (ICR), Enhanced DIS, Defog
- Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), P-Iris
- Digital image stabilization with built-in Gyro sensor
- Face mask detection, loitering, directional detection, audio detection, sound classification, tampering, shock detection
- Motion detection, PTZ Handover, audio event playback, digital auto tracking
| Brand | |
|---|---|
| Brand | Hanwha Group |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Monochrome |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Optical Zoom | 2.6x |
| HD Recording | Yes |
| Lens Included | Yes |
| Effective Camera Resolution | 8 Megapixel |
| Maximum Video Resolution | 3840 x 2160 |
| Image Sensor Type | CMOS |
| Minimum Focal Length | 3.90 mm |
| Maximum Focal Length | 10 mm |
| Maximum Aperture | f/1.2 |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Lens Type | Varifocal |
| Recording Formats | 4K |
| Maximum Frame Rate | 30 fps |
| Lens Mount Type | CS-Mount |
| Size / Dimensions | |
|---|---|
| Form Factor | Bullet |
| Mount Type | Corner Mount |
| General Features | |
|---|---|
| Remote Management | Yes |
| Durability | Explosion Proof |
| Video Formats | H.264 (MPEG-4 Part 10/AVC) |
| Analog Video Signal Format | CVBS |
| Manufacturer | Hanwha Group |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Humidity | 90% |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
