The TMC-GSFP electrical-to-optical Ethernet media converters accept a 10/100 or 1000 Mbps electrical input and converts to a 100 or 1000 Mbps optical output (selected by a dip switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output. "Auto-Negotiating" is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP optical module.
A PoE model, the TMC-GSFPPOEM meets the IEEE802.3at standard and provides 30 watts of PoE+ power.

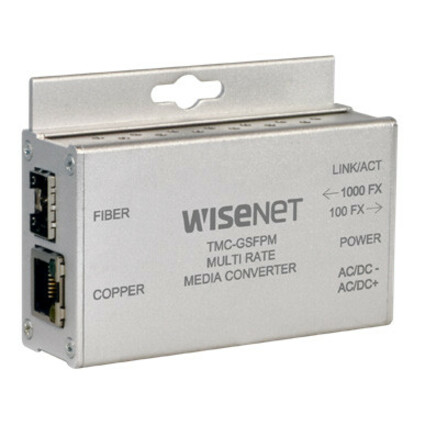

The series consists of small size single channel models, TMC-GSFPM & TMC-GSFPPOEM, and a standard size, single-channel model, TMC-GSFP. The standard size unit may be directly plugged into the SBP-C14 / SBP-C03 Rack or operated as a standalone module. The small size unit operates as standalone modules only.
- Compatible with other converters in the TMC-GSFP series
- Uses Wisenet SFPs (sold separately) for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
- Bi-color LED status indicators confirm operating status
- Supports Jumbo Frames up to 10K Bytes for streaming video applications
- 1000BASE-FX or 100BASE-FX optical port when used with suitable SFPs
- 10/100/1000BASE-TX electrical port
- Full-duplex transmission of 10/100/1000 Mbps Ethernet
| Brand | |
|---|---|
| Brand | Hanwha Group |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 120 km |
| Manufacturer | Hanwha Group |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| NDAA Compliant | Yes |
