Intelligent security. Effortless setup.
Introducing the new Q Series AI 5MP Fixed cameras, featuring advanced AI analytics and improved image optimization. With 5MP resolution for exceptional clarity and a fixed focus lens for effortless setup, these cameras offer superior performance and user-friendly installation.
AI-based motion detection to detect and classify objects
Q series AI cameras come equipped with AI-based object detection to reduce false alarms so you can see the details that matter.
BestShot
BestShot leverages AI to identify and capture the most important moments. With rich metadata, you can quickly and easily find the information you need.
Searchable color attributes
Q series AI cameras capture detailed color information from detected objects as searchable metadata to enhance forensic search.
Dynamic privacy masking
Q Series AI cameras intelligently mask sensitive objects, ensuring compliance with privacy regulations without compromising security.
Enhance security with AI triggered events
Set up virtual areas and lines to receive alerts when objects classified as people or vehicles enter, exit, intrude or loiter in designated locations.
Line Crossing
Leverage the power of AI to create virtual perimeters and receive instant alerts when objects cross designated lines.
Loitering Detection
Proactive AI-driven alerts help you identify and respond to potential security risks before they escalate.
Advanced business intelligence
Q Series AI cameras use cutting-edge technology to accurately detect people from any angle, providing valuable business intelligence.
Cut through the noise, see with clarity
Q Series AI cameras use intelligent WiseNRII technology to apply adaptable noise reduction to keep your footage sharp, even in challenging lighting and motion.
Connect and configure?via Wi-Fi
Easily connect to your Q Series AI cameras via the included Wi-Fi dongle and use the Wisenet Installation app to adjust camera positioning, zoom, focus, and viewing angles.

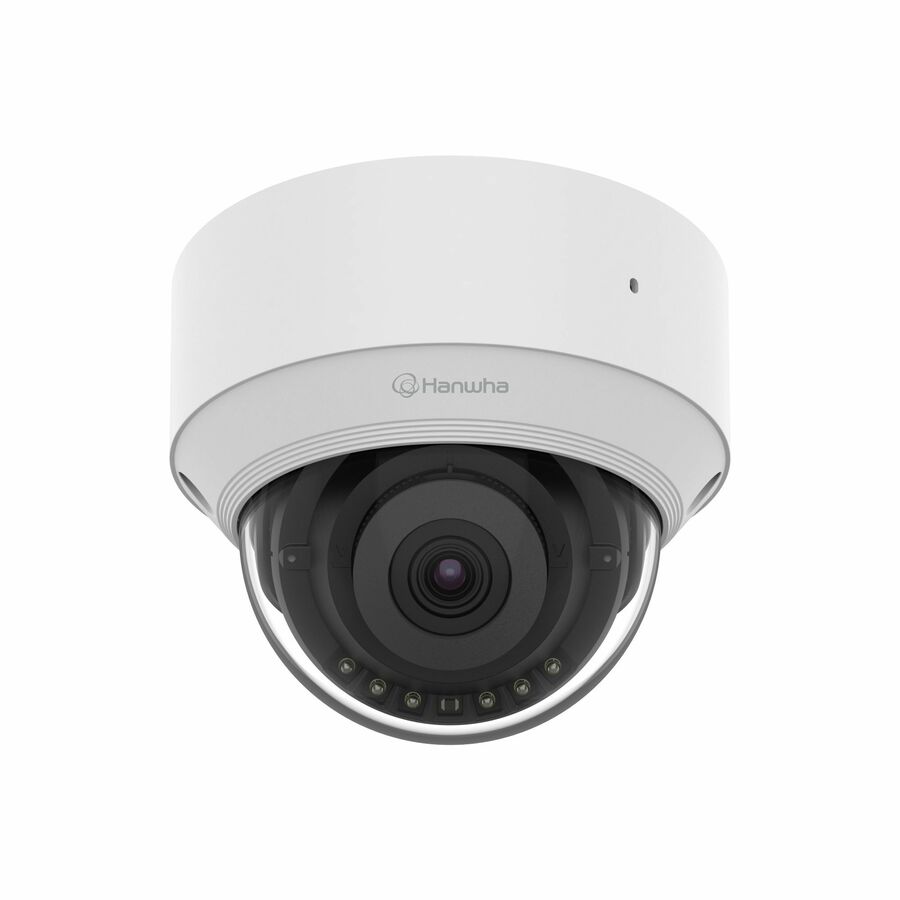

- Wisenet Q network indoor dome camera
- 5MP @ 30fps
- fix lens 3mm (H:100°/V: 73°)
- triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine)
- WiseNR?(Based on AI engine), WDR 120dB, IR viewable length 25m(82.02ft)
- Built-in Mic
- WiseMD based on AI engine, Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle)
- IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit/(Dis)Appear)
- defocus detection
- hallway View
- built-in SD card slot (1x256GB)
- video analytics
- USB for easy installation
- open platform, PoE
- Operating temperature -10°C~+45°C(+14°F ~ +113°F)
- white color.
- Alarm I/O is supported through an optional cable (SPP-C7200)
| Brand | |
|---|---|
| Brand | Hanwha Group |
| Memory / RAM | |
|---|---|
| Internal Memory | 2 GB |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Maximum Power Consumption | 8.10 W |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Protocols | IEEE 802.1X (EAP-TLS , PEAP-MSCHAPv2) |
| Wireless Technology | Wi-Fi |
| Connectivity Technology | Wired & Wireless |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| HD Recording | Yes |
| Night Vision | Yes |
| PTZ Modes | Digital PTZ |
| Lens Included | Yes |
| Wide Dynamic Range Detail | 120 dB |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 5 Megapixel |
| Maximum Video Resolution | 2592 x 1944 |
| Image Sensor Type | CMOS |
| Maximum Focal Length | 3 mm |
| Maximum Aperture | f/1.6 |
| Shortest Shutter Speed | 1/25000 Second |
| Longest Shutter Speed | 1/5 Second |
| Lens Type | Fixed |
| Night Vision Distance | 82.02 ft |
| Maximum Frame Rate | 30 fps |
| Image Sensor Size | 1/2.8" |
| Lens Mount Type | M12-mount |
| Camera Iris | Fixed |
| Field of View | H: 100°/ V: 73°/ D: 129° |
| Audio | |
|---|---|
| Audio Support | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Dome |
| Diameter | 4.3" |
| General Features | |
|---|---|
| AI-powered | Yes |
| Remote Management | Yes |
| Languages Support | Greek |
| Indoor/Outdoor | Indoor |
| Video Formats | H.264H |
| Manufacturer | Hanwha Group |
| Compliance & Certification | |
|---|---|
| Minimum Operating Humidity (N | 0% |
| Maximum Operating Humidity (N | 95% |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Minimum Operating Humidity (Non-condensing) | 0% |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Minimum Storage Humidity | 0% |
| Maximum Storage Humidity | 95% |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
