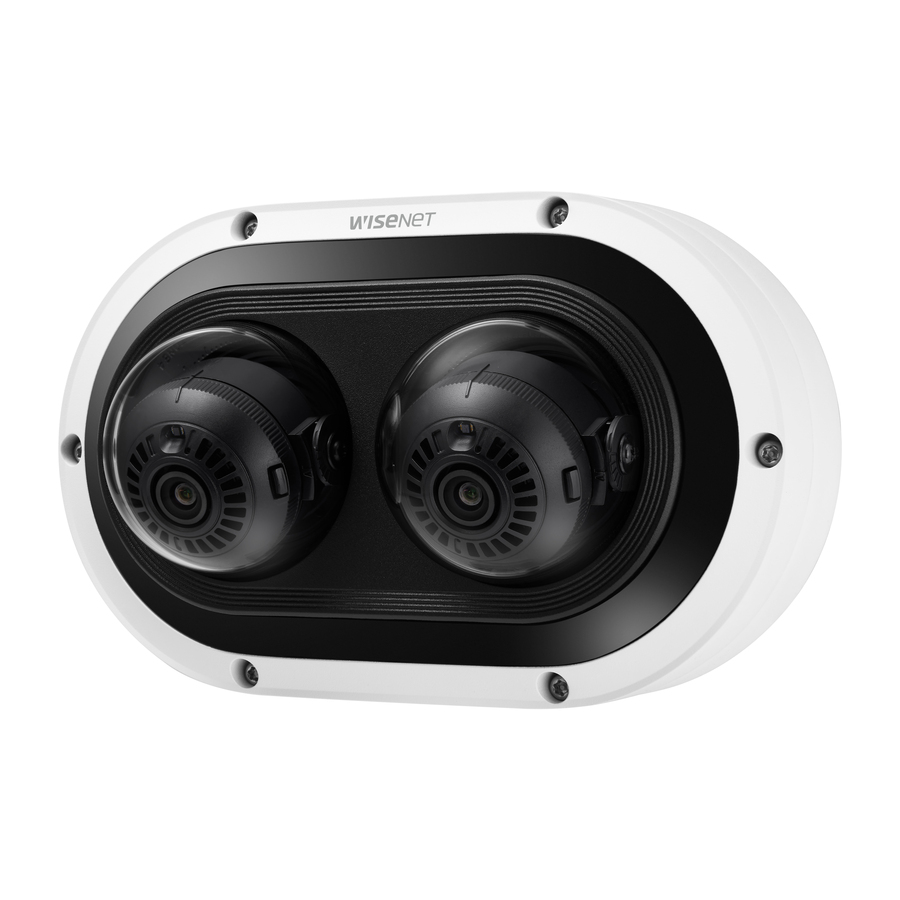

The PNM-12082RVD is an outdoor vandal-rated network camera featuring 2 Channels, with IR in a dome camera form factor. Featuring 6MP X 2 sensors, each at 15fps with a 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover. License-free intelligent video analytics include: Virtual line/direction, Enter/Exit, Appear/Disappear, Loitering, intrusion, Defocus detection, Motion detection, Tampering. Audio detection, Sound classification (with optional I/O Box). FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10. Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble
- WiseNR, WiseStreamII, extremeWDR (120dB)
- Maximum 3328x1872 resolution
- Maximum 15fps@6M
- Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
- 3.54~6.69mm motorized varifocal, 78° tilt angle
- IR viewable length: IR 25m(82ft) based on scene
- TPM 2.0(FIPS 140-2 certified)
- IP66, IK10, NEMA4X
| Brand | |
|---|---|
| Brand | Hanwha Group |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Optical Zoom | 1.9x |
| HD Recording | Yes |
| Night Vision | Yes |
| Lens Included | Yes |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 6 Megapixel |
| Maximum Video Resolution | 3328 x 1872 |
| Image Sensor Type | CMOS |
| Minimum Focal Length | 3.54 mm |
| Maximum Focal Length | 6.69 mm |
| Minimum Aperture | f/2.64 |
| Maximum Aperture | f/1.67 |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Lens Type | Varifocal |
| Night Vision Distance | 82.02 ft |
| Maximum Frame Rate | 15 fps |
| Field of View | H: 96�?(Wide)~47�?(Tele) V: 51�?(Wide)~26�?(Tele) D: 113�?(Wide)~54�?(Tele) |
| Size / Dimensions | |
|---|---|
| Form Factor | Dome |
| Mount Type | Box Mount |
| General Features | |
|---|---|
| Remote Management | Yes |
| Durability | Vandal Resistant |
| Indoor/Outdoor | Outdoor |
| Video Formats | H.264 |
| Number of Sensors | 2 |
| Manufacturer | Hanwha Group |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Humidity | 95% |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Impact Protection Rating | IK10 |
| Miscellaneous | |
|---|---|
| Product Name | 6MP X 2 IR Outdoor Dome |
