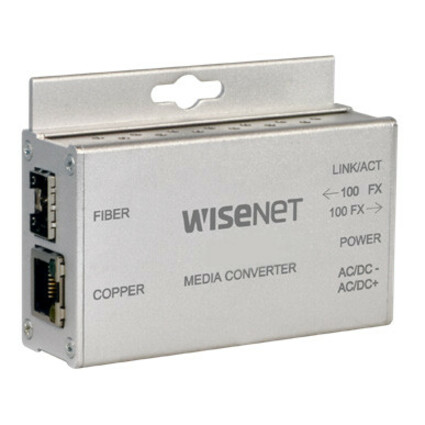

The TMC-FSFPPOE30M electrical-to-optical Ethernet media converter interfaces between 10/100/ Mbps electrical signal and a 100 Mbps optical output, selectable by dip switch. "Auto-Negotiating" is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP optical module. Provides up to 30W of PoE+ power to support connected devices such as Wisenet IP Cameras.
- Power supply included
- Compatible with other converters in the TMC-FSFP series
- Uses Wisenet SFPs (sold separately) for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
- Bi-color LED status indicators confirm operating status
- 100BASE-FX optical port when used with suitable SFPs
- 10/100 BASE-TX electrical port
- Full-duplex transmission of 10/100 Mbps Ethernet
- Provides up to 30W of PoE+ power to support connected devices such as Wisenet IP Cameras.
| Brand | |
|---|---|
| Brand | Hanwha Group |
| Power & Battery | |
|---|---|
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 120 km |
| Manufacturer | Hanwha Group |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
