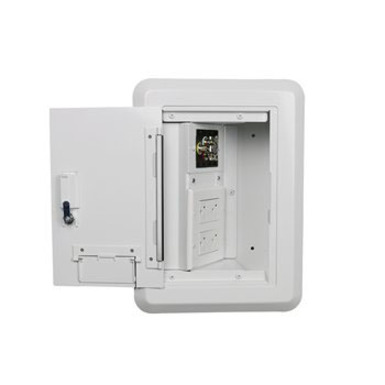

Designed to fit into the 16" on center (406mm) opening between studs in a standard 2"x 4" (51mm x 102mm) wall. For both new work and old work applications. The box has 4-gang standard NEMA size openings and is designed to accommodate power, communications, and A/V devices. The box has been designed with a cable pass-through capability, allowing multiple service access points to be daisy chained together, eliminating the need for multiple conduit runs. Box includes temporary cover. Finished cover assembly (EHWB4C) sold separately.
- UL Listed to U.S. and Canadian safety standards.
- Both boxes (4- and 8-gang) fit are designed to fit in 16" opening between studs in standard 2" x 4" [51mm x 102mm] wall.
- Can be installed in new work and old work installations. New hardware not necessary.
- Accepts trade size service feeds from 3/4" up to 2". Knockout plates are removable and interchangeable, providing multiple options.
- 3 5/8" [92mm] of space behind device plates provides the extra depth needed for wiring larger A/V devices.
- Accepts Legrand AVIP devices, plus A/V devices from leading manufacturers.
- Designed to accept standard 1- to 4-gang device plates. No proprietary plates simplifies ordering and installation.
- Cover opens a full 180° and can be painted to blend with room decor. Includes integrated handle, lock and key set for security, and flush egress door for cabling.
- Built-in tunnel & feed through capability allows service feeds to be fed through the box, reducing the number f feeds required to reduce installation time.
- Available in bot
| Brand | |
|---|---|
| Brand | Legrand Group |
| Size / Dimensions | |
|---|---|
| Mount Type | Wall Mount |
| Appearance | |
|---|---|
| Number of Gangs | 4 |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
