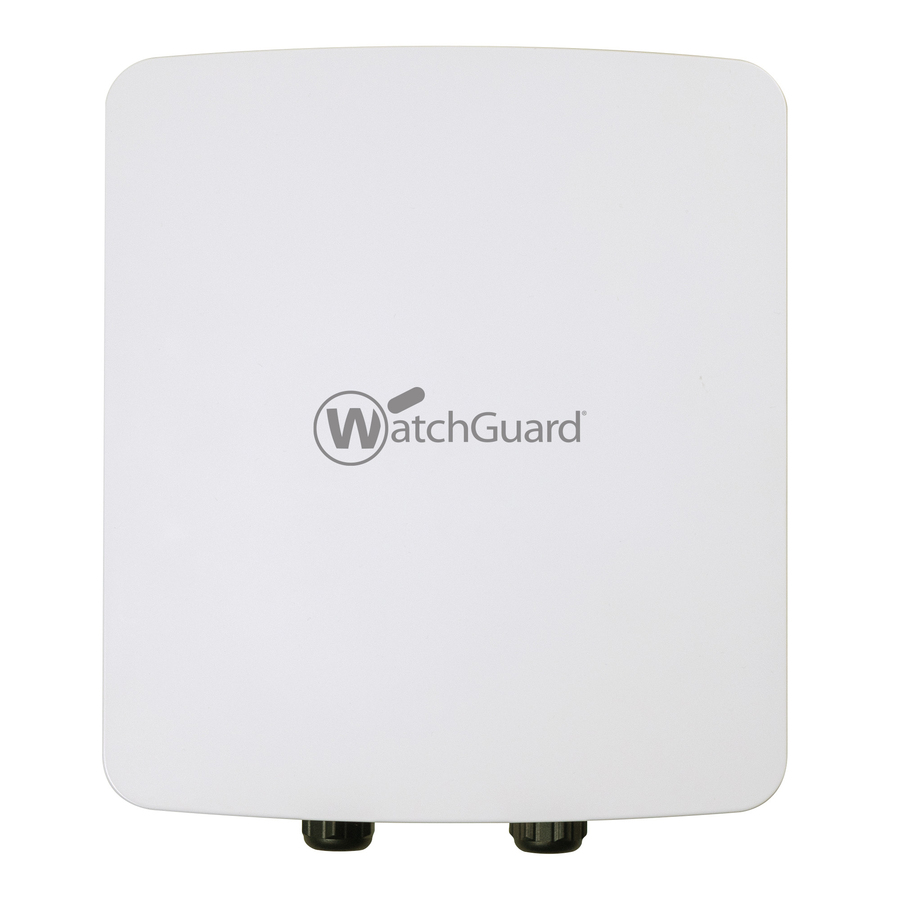

The AP 430 CR is perfect for high-density deployments that include an industrial-rated IP67 enclosure, designed for either indoor or rugged outdoor deployment with superior Wi-Fi 6 performance and secure WPA3 encryption. Includes six external antennas to deliver a maximum TX power of 23dBm. One ethernet port is included to support up to 5 Gbps and includes one gigabit PoE+ port. Lightning-fast speed crafts an unwavering connectivity executed through a total of 2402 Mbps the 5 GHz band and 574 Mbps delivered on the 2.4 GHz band. Integrated 4x4 radio chains and streams to deliver a secure and seamless network experience. WatchGuard's AP130, AP330, AP430CR, and AP432 requires an active Management License. Select from a Standard or USP Management License to activate and access WatchGuard Cloud. The Management License is required to activate and manage the WatchGuard access points. Requires 6 external antennas (WG9004) sold separately.
- Wi-Fi 6 and WPA3 encryption
- Six N-Type external connectors offer a variety of external antenna choices for flexible pattern coverage capabilities (antennas sold separately)
- The IP67 sealed enclosure provides protection in harsh weather conditions or rugged environments and can be mounted with direct exposure to the elements - no overhang or shelter required
- Support for up to eight individual SSIDs per radio allows for maximum flexibility in network design
- Lightning-fast speed crafts an unwavering connectivity experience executed by 2402 Mbps on the 5 GHz band and 574 Mbps delivered on the 2.4 GHz band
| Brand | |
|---|---|
| Brand | WatchGuard Technologies |
| Power & Battery | |
|---|---|
| Power Consumption | 19 W |
| Networking & Connectivity | |
|---|---|
| Total Number of Antennas | 6 |
| Number of External Antennas | 6 |
| Wireless Transmission Speed | 2.91 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| PoE PD Port | Yes |
| PoE+ (RJ-45) Ports | Yes |
| Size / Dimensions | |
|---|---|
| Antenna Form Factor | External |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| General Features | |
|---|---|
| Indoor/Outdoor | Outdoor |
| Manufacturer | WatchGuard Technologies, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP67 |
| Miscellaneous | |
|---|---|
| Product Name | AP430CR Outdoor Access Point |
