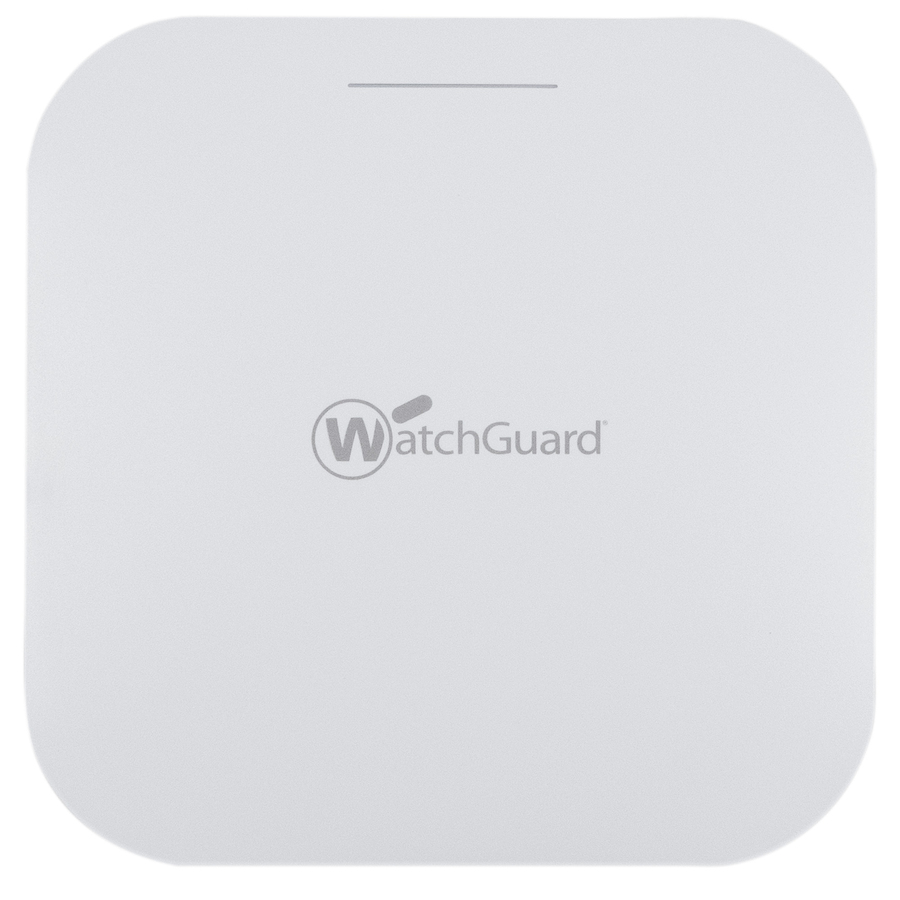

The AP 330 is WatchGuard's all-purpose Wi-Fi 6 access point and is the ideal choice for mid-density indoor environments of all sizes to utilize the most secure WPA3 encryption for a seamless experience. Includes 2x2 radio scanning optimized for Wi-Fi 6 with six internal antennas. Maximum TX power delivers 22 dBm and a 2dBi antenna gain with one Ethernet port supporting up to 2.5 Gbps. These Wi-Fi 6 access points deliver a maximum data rate for a seamless wireless experience by supporting up to 1.2 Gbps on the 5 GHz band and 574 Mbps available on the 2.4 GHz band. WatchGuard's AP130, AP330, AP430CR, and AP432 requires an active Management License. Select from a Standard or USP Management License to activate and access WatchGuard Cloud. The Management License is required to activate and manage the WatchGuard access points.
- Wi-Fi 6 and WPA3 encryption
- Includes 2x2 radio optimized for Wi-Fi 6 with six omnidirectional internal antennas
- PoE power includes 12V/2A DC In, 802.3at (PoE+)
- Maximum TX power delivers 22 dBm and a 2 dBi antenna gain with one Ethernet port supporting up to 2.5 GBps
- These Wi-Fi 6 access points deliver a maximum data rate for a seamless wireless experience by supporting up to 1201 Mbps on the 5 GHz band and 574 Mbps available on the 2.4 GHz band.
| Brand | |
|---|---|
| Brand | WatchGuard Technologies |
| Power & Battery | |
|---|---|
| Power Consumption | 15.90 W |
| Networking & Connectivity | |
|---|---|
| MIMO Technology | Yes |
| Total Number of Antennas | 6 |
| Number of Internal Antennas | 6 |
| Wireless Transmission Speed | 1.73 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| PoE+ (RJ-45) Ports | Yes |
| Size / Dimensions | |
|---|---|
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Manufacturer | WatchGuard Technologies, Inc |
| Misc Ports | |
|---|---|
| Management Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
