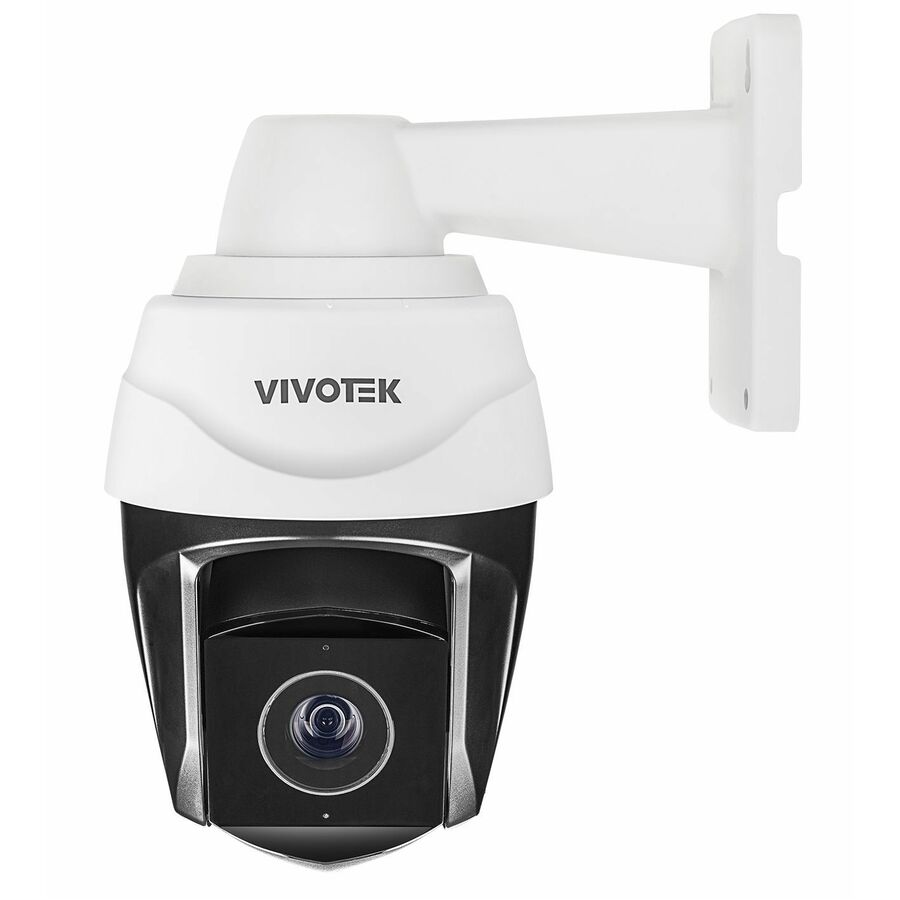

The new VIVOTEK SD9368-EHL is a professional IR speed dome camera (PTZ) with 2MP resolution at 60fps, excellent for video surveillance in wide coverage areas such as airports, city surveillance, and manufacturing facilities. SD9368-EHL is equipped with 250M IR illuminators and a 40x optical zoom to gain more details in any scene. The smart IR technology allows broad coverage FOV and highly uniform IR intensity while at the same time avoiding hotspots.
Video surveillance in big areas has the potential for many incidents, SD9368-EHL's built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track the suspected person automatically in real time.
SD9368-EHL's camera body is protected with IP66, IK10 and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40? to 60? (-40°F to 140°F) for operation in extreme weather conditions.
- 60 fps @ 1920x1080
- 40x Optical Zoom, Auto Focus
- 360° Continuous Pan, -20° to 90° (auto flip) Tilt
- 250M IR with Smart IR
- Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
- -40°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions
- EIS (Electronic Image Stabilization) for Image Stability
- Trend Micro IoT Security
- Smart Tracking Advanced for Moving People with People-based Deep Learning Technology
| Brand | |
|---|---|
| Brand | Vivotek |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 48 V DC |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Field of View | 39.39° ~ 1.09° (Vertical) , 73.03° ~2.13° (Diagonal) , 65.70° ~ 1.88° (Horizontal) |
| Optical Zoom | 40x |
| HD Recording | Yes |
| Night Vision | Yes |
| Lens Included | Yes |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 2 Megapixel |
| Maximum Video Resolution | 1920 x 1080 |
| Image Sensor Type | CMOS |
| Minimum Focal Length | 4.25 mm |
| Maximum Focal Length | 170 mm |
| Minimum Aperture | f/1.6 |
| Maximum Aperture | f/4.95 |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Lens Type | Varifocal |
| Recording Formats | Full HD |
| Night Vision Distance | 820.21 ft |
| Number of IR LEDs | 8 |
| Maximum Frame Rate | 60 fps |
| Image Sensor Size | 1/2.8" |
| Size / Dimensions | |
|---|---|
| Form Factor | Dome |
| Mount Type | Wall Mount |
| General Features | |
|---|---|
| Remote Management | Yes |
| Durability | Corrosion Resistant |
| Video Formats | MJPEG |
| Manufacturer | Vivotek, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Humidity | 98% |
| Ingress Protection Rating | IP66 |
| Impact Protection Rating | IK10 |
