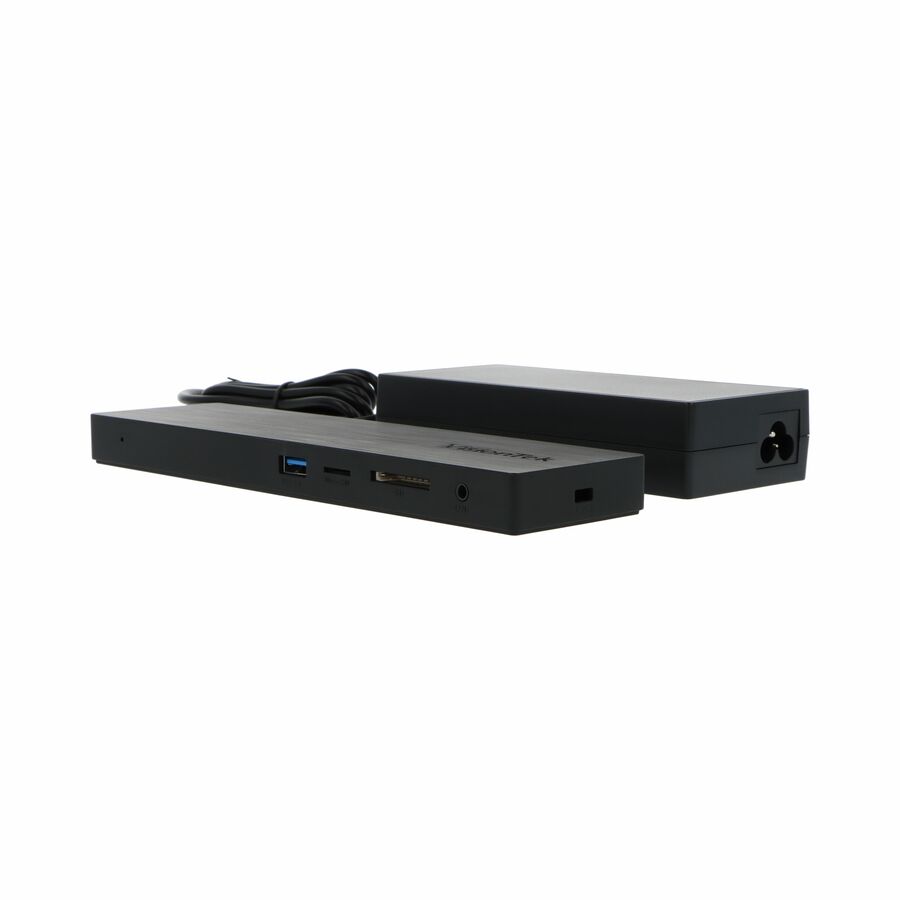

Increase productivity with our plug and play power passthrough docking station, the VisionTek VT2500 USB-C Docking Station for Windows™ and Mac™ laptop systems.
With a single USB-C connection, you can connect up to three external displays, transfer files and data at up to 5Gbps speeds, play audio and charge your laptop and mobile devices.
- Universally Compatible USB-C - Windows™ or Mac™ with USB-C 3.2 Gen 2, the VT2500 is compatible through the single, included USB-C 1 meter cable, making this the ideal docking station for mixed system environments. Also compatible with Thunderbolt™ 3 systems.
- USB-C Power Delivery - Charge your laptop, up to 85W with included USB-C Power adapter and cable. The VT2500 can also be used without the power adapter to charge your mobile devices from the laptop's battery. USB-C power adapter can be used to charge your laptop without the dock too.
- Connect Up to Three External Displays - The VT2500 has three video ports to provide video connection options that suit your needs using MST technology. Use two DisplayPort and one HDMI together for a three-display experience. (Windows™ systems support up to three external displays. Mac™ systems support one extended and one cloned/mirrored external display.)
- Expanded Selection of Ports - Flexibility is the goal with the VT2500, by offering some of the most commonly needed ports in one dock using the included 1 meter USB-C cable.
- 1x HDMI and 2x DP ports let you connect external displays to increase your system workspace.
- 2x USB 3.0 ports let you connect external storage or mobile devices for sync & charge.
- 2x USB 2.0 ports increase the number of compatible devices you can connect when you don't need USB 3.0 speed support, including full sized mouse & keyboard.
- 1x SD and 1x MicroSD Reader port let you retrieve data without having to use any of the USB ports.
- 1x Combination 3.5mm Audio Input/Output port gives you a single connection option for music listening or video conference participation.
- 1x RJ45 port supports speeds up to 1000Mbps (10/100/1000Mbps supported) to keep you wired to the internet, avoiding Wi-Fi connection or security concerns.
Key Features:
- USB-C Compatibility (Including Thunderbolt™ 3)
- Triple Display MST Docking Station
- Power Delivery up to 85W with included USB-C Power adapter and cable
- Supports up to 3 external displays - Windows™
- Supports up to 2 external displays - Mac™
- 2x USB 3.0 Ports
- 2x USB 2.0 Ports
- Kensington™ Security Lock Slot
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
- USB-C Compatibility (Including Thunderbolt™ 3)
- Triple Display MST Docking Station
- Power Delivery up to 85W with included USB-C Power adapter and cable
- Supports up to 3 external displays - Windows™
- Supports up to 2 external displays - Mac™
- 2x USB 3.0 Ports
- 2x USB 2.0 Ports
- Kensington™ Security Lock Slot
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boo
- USB-C Compatibility (USB-C 3.2 Gen 2 with DisplayPort Over USB-C or Thunderbolt 3 / Thunderbolt 4 )
| Brand | |
|---|---|
| Brand | VisionTek Products |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 85 W |
| Power Source Type | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wireless |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| USB Type-C | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Security | |
|---|---|
| Kensington Security Slot | Yes |
| General Features | |
|---|---|
| Manufacturer | VisionTek Products, LLC |
| Misc Ports | |
|---|---|
| Host Interface | USB Type C |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
