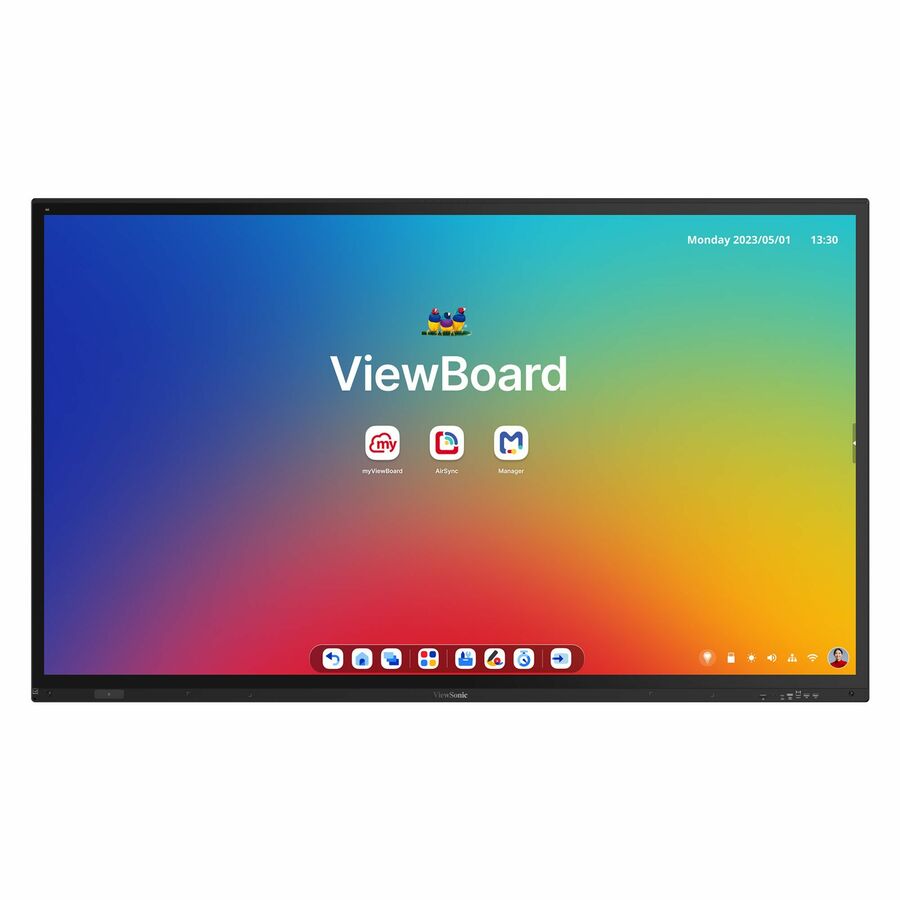

Elevate every meeting with the ViewSonic® ViewBoard® IFP8663 - an 86" interactive flat panel display designed to power productivity in modern boardrooms, conference spaces, and hybrid workflows. Featuring ultra-responsive Projected Capacitive (PCAP) touch technology and a stunning bezel-less 4K display, it ensures smooth, precise interactions and crystal-clear visuals that keep teams engaged. Built on the latest Android™ EDLA platform, it delivers enhanced security, seamless app integration, and future-proof performance. From dynamic brainstorming to high-stakes presentations, the IFP8663 combines enterprise-grade tools with intuitive design to make every session more efficient and impactful. Backed by ViewSonic's robust software ecosystem and engineered for 24/7 reliability, this display is your scalable solution for driving collaboration, streamlining operations, and staying ahead in a fast-moving business world.
- Enterprise-Grade Security
- Built for IT Management
- Engaging Meetings with ViewSonic® Software
- Ultra-Responsive PCAP Touch for Seamless Collaboration
- Instantaneous Collaboration with Write-Away Technology
- Easy Access with Quick User Authentication
- Camera-Ready with External Options
| Brand | |
|---|---|
| Brand | ViewSonic Corporation |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Rockchip |
| Processor Model | RK3576 |
| Processor Core | Octa-core (8 Core) |
| Memory / RAM | |
|---|---|
| Standard Memory | 16 GB |
| Memory Technology | LPDDR |
| Storage | |
|---|---|
| Flash Memory Capacity | 128 GB |
| Screen / Display | |
|---|---|
| Contrast Ratio | 1 , 200:1 |
| Panel Life | 50000 Hours |
| Screen Size Class | 86" |
| Viewable Screen Size | 86" |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Number of Touch Points | 20 |
| Backlight Technology | Direct LED |
| Screen Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Screen Mode | 4K UHD |
| Aspect Ratio | 16:9 |
| Brightness | 450 Nit |
| Response Time | 6.50 ms |
| Standard Refresh Rate | 60 Hz |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Consumption | 145 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Ethernet | Yes |
| USB Ports | |
|---|---|
| Number of USB Type-C (Power D | 4 |
| USB | Yes |
| Total Number of USB Ports | 12 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 4 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Audio Line In | Yes |
| Audio | |
|---|---|
| Number of Microphone Array El | 8 |
| Speakers | Yes |
| Number of Speakers | 3 |
| Microphone | Yes |
| RMS Output Power | 60 W |
| Software & Licensing | |
|---|---|
| Operating System Platform | Android |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| Glass Thickness | 0.12" |
| Appearance | |
|---|---|
| Surface Hardness | 9H |
| General Features | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Miscellaneous | |
|---|---|
| Product Name | ViewBoard IFP8663 Collaboration Display |
