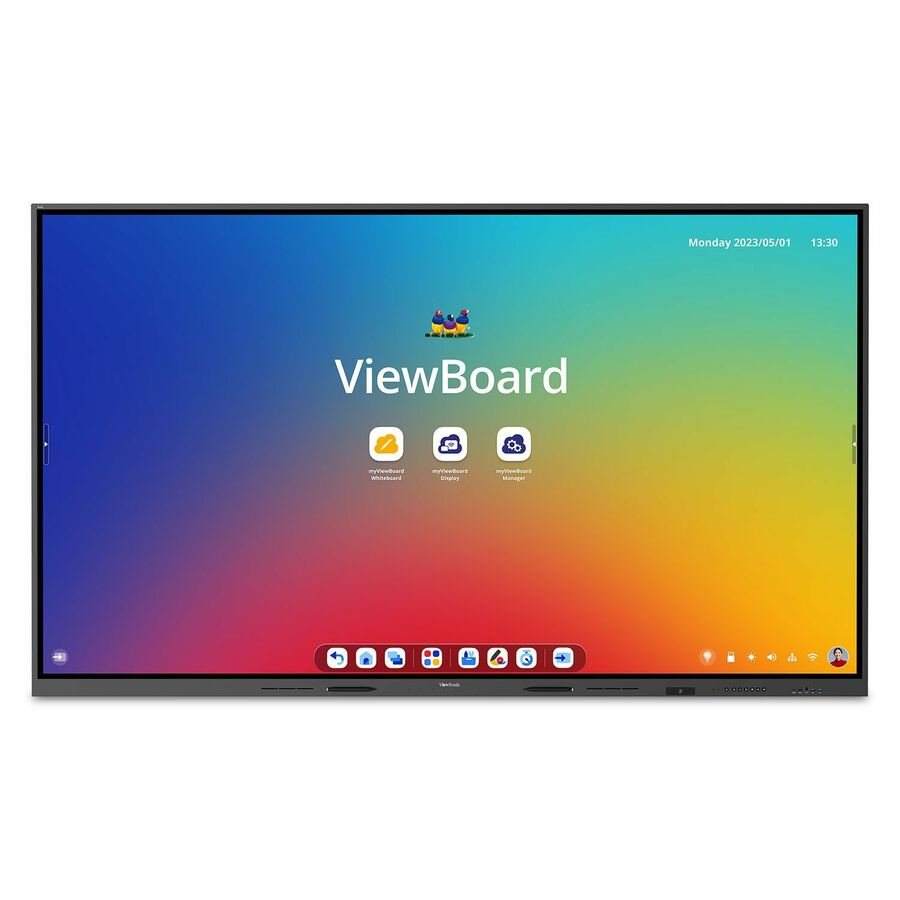

The ViewSonic® ViewBoard® IFP110 interactive display boasts a massive 110" touchscreen with 4K Ultra HD resolution, making it one of the largest and most immersive displays on the market. Perfect as an interactive video wall for large-scale presentations in museums, showrooms and training centers, this 5'x8' screen is equivalent to four 55" touch displays in a 2x2 video wall layout - but offers a much simpler set up with reduced calibration and maintenance costs. What's more, with integrated ViewSonic TeamOne™ collaboration software and vCast™ streaming software, content creation and sharing has never been easier. In addition, integrated USB-C provides quick and easy one-wire connectivity, while a VESA-compatible design delivers flexible installation options for wall mounting or mobile cart use.
- Massive Screen: A 110" 4K touch display is ideal as a large-scale interactive video wall
- ADVANCED TOUCH: Up to 40-point multi-touch lets users write on the display with their fingers and included stylus
- Simpler Setup and Maintenance: 5'x8' screen is equivalent to four 55" touch displays in a 2x2 video wall layout - but offers a much simpler set up with reduced calibration and maintenance costs.
- TeamOne Collaboration on a Grand Scale: ViewSonic TeamOne™ software transforms this massive 110" touchscreen into an infinite digital whiteboard.
- REMOTE MANAGEMENT: Schedule updates and monitor device status with the built-in ViewSonic Manager™ software
- Secure NFC: Unlock the ViewBoard interactive display with an NFC card for instant access to your personalized settings and accounts.
| Brand | |
|---|---|
| Brand | ViewSonic Corporation |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | ARM |
| Processor Type | Cortex A73 + A53 |
| Processor Core | Octa-core (8 Core) |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Storage | |
|---|---|
| Flash Memory Capacity | 128 GB |
| Screen / Display | |
|---|---|
| Contrast Ratio | 000:1 , 5 |
| Display Orientation | Landscape |
| Viewable Screen Size | 110" |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Touchscreen Technology | Infrared (IrDA) |
| Number of Touch Points | 20 |
| Backlight Technology | Direct LED |
| Screen Resolution | 3840 x 2160 |
| Display Screen Technology | TFT LCD |
| Display Screen Type | LCD |
| Screen Mode | 4K UHD |
| Aspect Ratio | 16:9 |
| Brightness | 400 Nit |
| Response Time | 8 ms |
| Standard Refresh Rate | 120 Hz |
| Color Supported | 1.07 Billion Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Ethernet | Yes |
| Near Field Communication | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| Total Number of USB Ports | 11 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 3 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Audio Line Out | Yes |
| Audio Line In | Yes |
| S/PDIF Out | Yes |
| Audio | |
|---|---|
| Number of Microphone Array El | 8 |
| Speakers | Yes |
| Number of Speakers | 2 |
| Microphone | Yes |
| RMS Output Power | 30 W |
| Software & Licensing | |
|---|---|
| Operating System Platform | Android |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 1000 x 600 |
| Appearance | |
|---|---|
| Tempered Glass | Yes |
| General Features | |
|---|---|
| Ambient Light Sensor | Yes |
| Manufacturer | ViewSonic Corporation |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Miscellaneous | |
|---|---|
| Product Name | ViewBoard IFP110 Collaboration Display |
