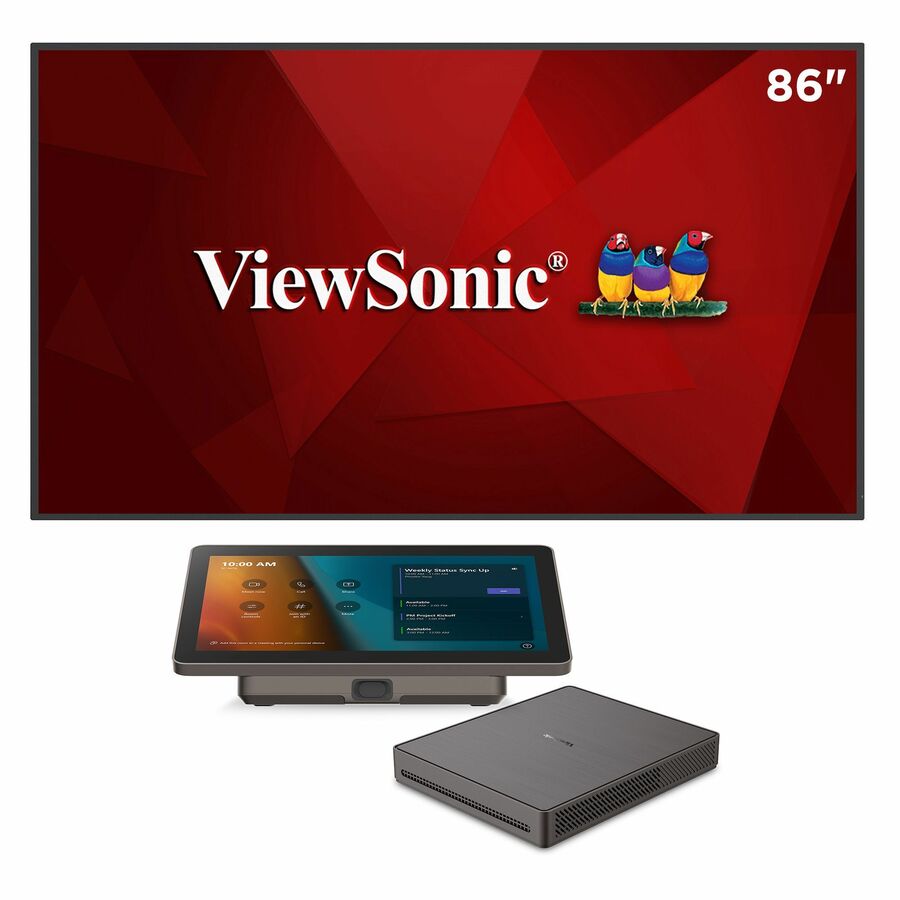

ViewSonic® TeamJoin™ solution, a Microsoft Teams Rooms certified offering, provides immersive and impactful meetings. It enhances communication and collaboration among diverse teams, irrespective of their locations. The solution includes a computing engine (MPC310-W31-TU), touch console (MRC1010-TN), 4K video bar system (UMB202), and 86-Inch Display (CDE8630). This one-stop, scalable solution caters to your needs and meeting space size, making high-quality video conferencing accessible to businesses of all sizes.
Computing Engine (MPC310-W31-TU): Intel® 12th generation Core™ processor. Delivers additional security features such as Intel® Threat Detection Technology, Control-Flow Enforcement, and more
Touch Console (MRC1010-TN): 10.1" touch display. Effortlessly initiate, join, or manage meetings with a single touch
4K Video Bar System (UMB202): Ultra HD 4K camera sensor for advanced image processing. Intelligent auto-framing and DOA voice tracking technology. 6-mic array beamforming soundbar with 11W speaker
86-Inch Display (CDE8630): Streamline your presentations, enhance collaboration, and succeed with the ViewSonic CDE8630 digital display. Whether your employees are in office or working remotely, they will enjoy fast and easy ways to communicate thanks to ViewBoard Cast™ screen sharing software and the myViewBoard® Display app that allows up to four participants to connect and share content. For maximum visibility even in rooms with high ambient light, these displays offer stunning 4K Ultra HD resolution, high brightness and a 25% high haze anti-glare screen. What's more, these all-in-one displays simplify installation and maintenance thanks to a powerful secured embedded platform that delivers smooth content playback without the need for a PC or media player.
- 86-inch 4K UHD display (CDE8630)
- Computing engine (MPC310-W31-TU) with Intel® 12th generation Core™ processor
- 10.1" touch display (MRC1010-TN)
- Video Bar System (UMB202) with Ultra HD 4K camera and 6-mic array beamforming soundbar with 11W speaker
| Brand | |
|---|---|
| Brand | ViewSonic Corporation |
| CPU / Processor | |
|---|---|
| Processor Type | Cortex A55 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.50 GHz |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Memory / RAM | |
|---|---|
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 1 , 200:1 |
| Dynamic Contrast Ratio | 000:1 , 5 |
| Viewable Screen Size | 86" |
| Backlight Technology | Direct LED |
| Display Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Brightness | 450 Nit |
| Response Time | 8 ms |
| Color Depth | 8-bit+FRC |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 3 |
| Number of HDMI 2.0 Ports | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 800 x 600 |
| Mount Type | Wall Mountable |
| Orientation | Landscape/Portrait |
| Bezel Width | 0.58" |
| Bezel Width (Top) | 0.58" |
| Bezel Width (Bottom) | 0.58" |
| Bezel Width (Left) | 0.58" |
| Bezel Width (Right) | 0.58" |
| Appearance | |
|---|---|
| Surface Hardness | 3H |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Manufacturer | ViewSonic Corporation |
| Maximum LED Life | 5.7 Year |
| Misc Ports | |
|---|---|
| Serial | Yes |
| RS-232C Input | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 90% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | No |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
| Miscellaneous | |
|---|---|
| Product Name | CDE8630-MTRC Digital Signage Display |
