Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager
For IT admins, it's tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Reliable 24/7 Operation Rating
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Flexible Installation
With landscape or portrait mode options, a uniform bezel width, HDMI in and HDMI out for up to 9-screen tiling (ex 1x2, 2x2, 3x2, 4x2, 3x3, 1x9, etc.) without an external HDMI matrix, this display delivers versatile video wall configuration out-of-the-box.
Advanced Multi-Source Capability
Picture in Picture (PiP) and Picture by Picture (PBP) options allow up to two independent sources to run at the same time.

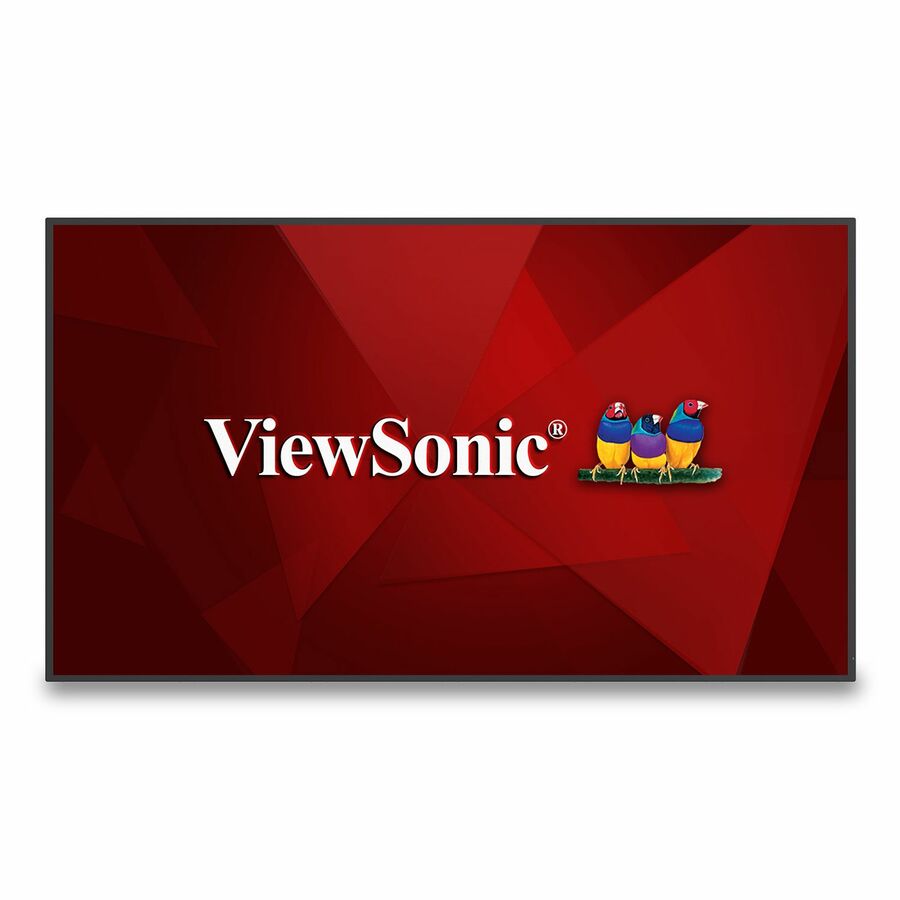

- ULTRA HD RESOLUTION: 43-inch 4K UHD (3840x2160p) 16:9 DLED backlight LCD head-only commercial display
- POWERFUL SOC PLATFORM: All-in-one Android 11.0 platform delivers easy deployment, display management, and content pushing
- FLEXIBLE INSTALLATION: With landscape or portrait mode options, a uniform bezel width, and tiling matrix with up to 9 displays (3x3 video wall configuration)
- ADVANCED MULTI-SOURCE CAPABILITY: Picture in Picture (PiP) and Picture by Picture (PBP) options allow up to two independent sources to run at the same time.
- INTEGRATED CONTENT MANAGEMENT SYSTEM: Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.
- SIMPLE MAINTENANCE: Included vController software delivers local display management, while myViewBoard Manager delivers remote management
- FLEXIBLE CONNECTIVITY: Versatile and convenient input options include LAN and optional Wi-Fi, HDMI 2.1, HDMI Out, HDMI-CEC, USB-C (65W PD), RS232, USB 2.0
- INDUSTRY-LEADING WARRANTY: 3-year coverage and c
| Brand | |
|---|---|
| Brand | ViewSonic Corporation |
| CPU / Processor | |
|---|---|
| Processor Type | Cortex A55 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.50 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Model | G52MP2 |
| Number of Screens | 1 |
| Memory / RAM | |
|---|---|
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Screen / Display | |
|---|---|
| Dynamic Contrast Ratio | 000:1 , 5 |
| Viewable Screen Size | 43" |
| Touchscreen | No |
| Backlight Technology | Direct LED |
| Display Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Panel Technology | MVA technology |
| Brightness | 450 Nit |
| Color Depth | 8-bit+FRC |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 3 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 1 |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 200 x 200 |
| Mount Type | Wall Mountable |
| Bezel Width | 0.79" |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Manufacturer | ViewSonic Corporation |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
