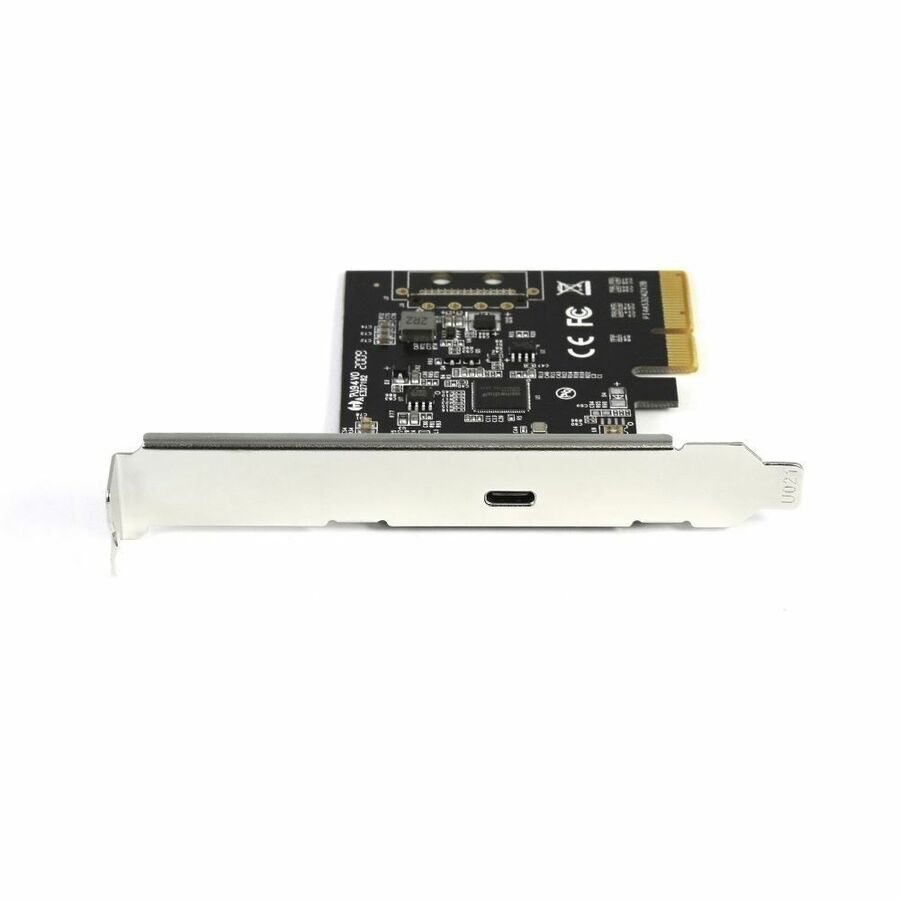

The Vantec Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card is design to offer the fastest USB 3.2 performance possible. This single port unique design allows for maximum bandwidth from the 4 lanes of the PCIe slot to the connected USB storage device. This one controller can handles data transfer at a theoretical speed of 20Gbps. This translates in to superfast file transfer and work done. Most USB port are only offering 10Gbps but this is double the speed with many others features like Latest Multi-OS compatibility, No drivers required, No Power Plug required, Plug & Ready, Standard & Low profile bracket, legacy compatibility and more.
- USB 3.2 Gen2x2 20Gbps
- Support PCIe v4.0 / v3.0 / v2.0; PCIe Gen3 x4
- Latest Multi-OS Compatibility, No Drivers Required
- Maximum Bandwidth and Transfer Speed
- Paired well with Vantec NST-220C3-SG (20Gbps enclosure)
- Backward compatibility with 10Gbps, 5Gbps and other legacy USB
- Standard and Low Profile bracket included
- Easy to Install using Plug and Ready, No Power Plug required
| Brand | |
|---|---|
| Brand | Vantec Thermal Technologies |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 1 |
| USB Version | 3.2 Gen 2 |
| USB Connector Type | Type-C |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Data Transfer Rate | 640 MB/s |
| Manufacturer | Vantec Thermal Technologies |
| Misc Ports | |
|---|---|
| Host Interface | USB 3.2 (Gen 2) Type C |
| Miscellaneous | |
|---|---|
| Product Name | Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card |
