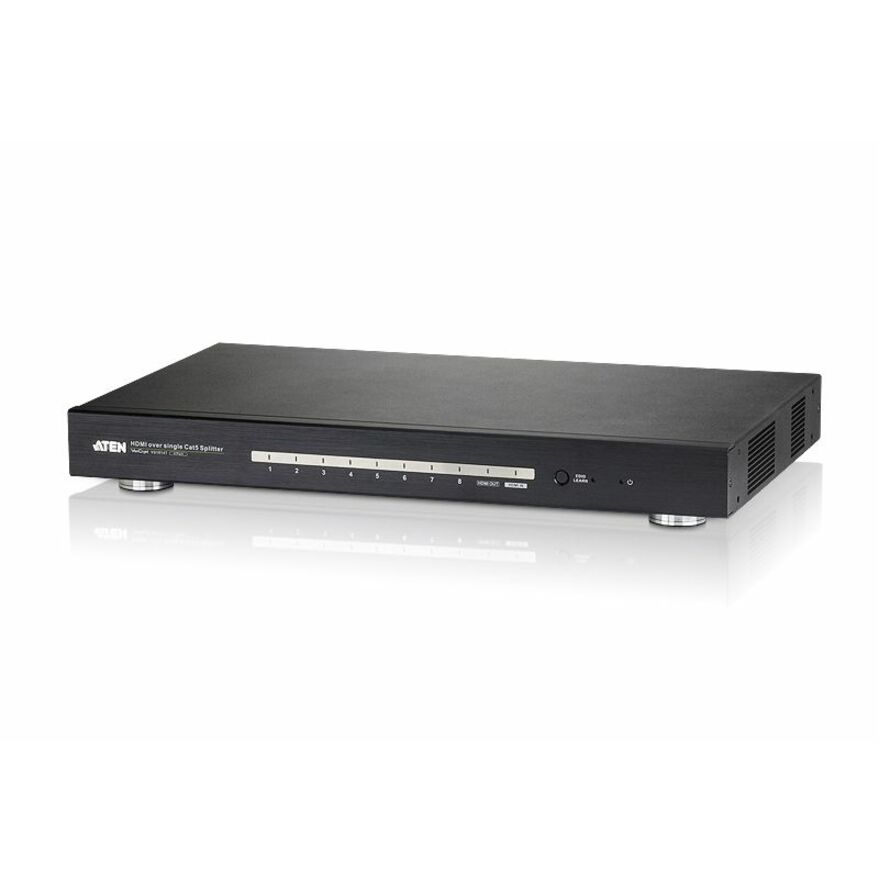

The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Suggested Compatible Receiver Units: VE812R HDMI Over Single Cat 5 Receiver
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
- In-store or tradeshow digital signage
- Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Supports Dolby True HD and DTS HD Master Audio
- Consumer Electronics Control (CEC) support
- HDMI (3D, Deep color, 4kx2k); HDCP Compatible
- Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- Offers local HDMI output
- Extends displays up to 100 m
- One HDMI input to 8 HDMI outputs via a Cat 5e cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 8 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 10.28" |
| Receiver Weight (Approximate) | 7.89 lb |
| Receiver Height | 1.73" |
| Receiver Depth | 17.21" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 8 |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | ATEN Technology, Inc |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 8 |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
