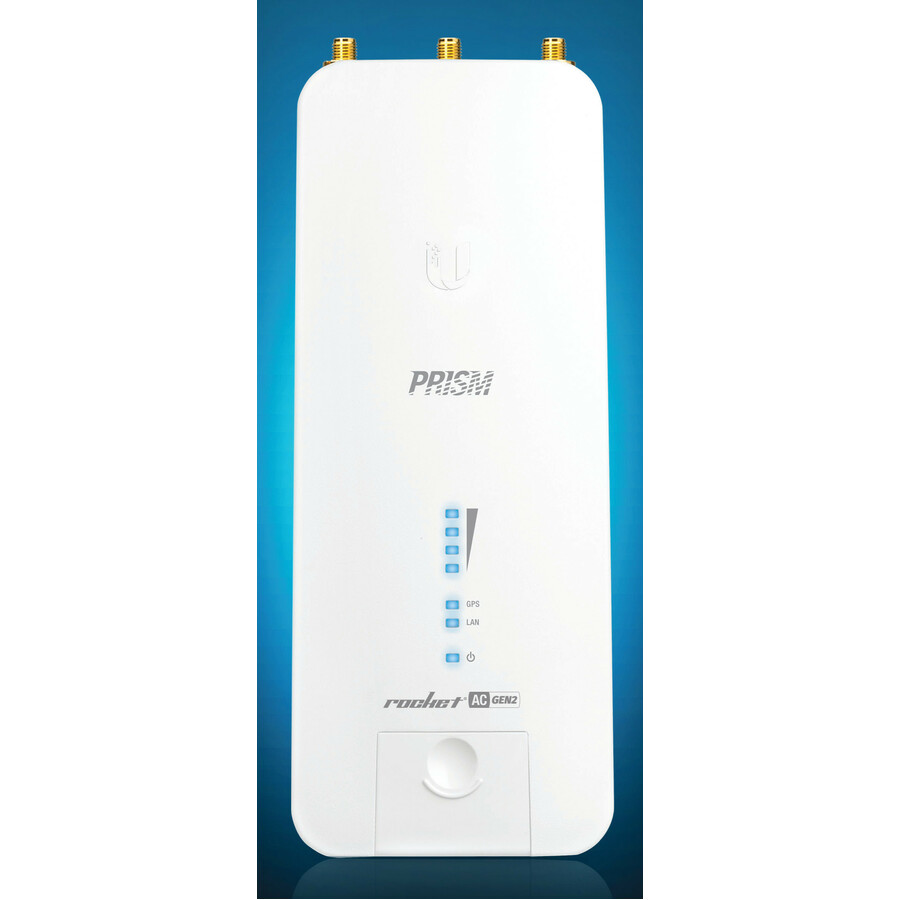

The Rocket® Prism 5AC covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.
Management Wi-Fi Radio
The Rocket® Prism 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism 5AC features enhanced protection against ESD events.
Revolutionary Filtering Technology
Ubiquiti's patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism 5AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
- Dedicated Wi-Fi Radio for Management
- Custom Ubiquiti® airMAX ac Processor
- 5 GHz Wide Band Operating Frequency
| Brand | |
|---|---|
| Brand | Ubiquiti Inc. |
| Networking & Connectivity | |
|---|---|
| Powerline | No |
| Wireless Transmission Speed | 500 Mbit/s |
| Frequency Band | 5 GHz |
| USB Ports | |
|---|---|
| USB | No |
| HDMI Ports | |
|---|---|
| HDMI | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| PoE (RJ-45) Port | No |
| PoE PD Port | Yes |
| General Features | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Video Ports | |
|---|---|
| VGA | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
