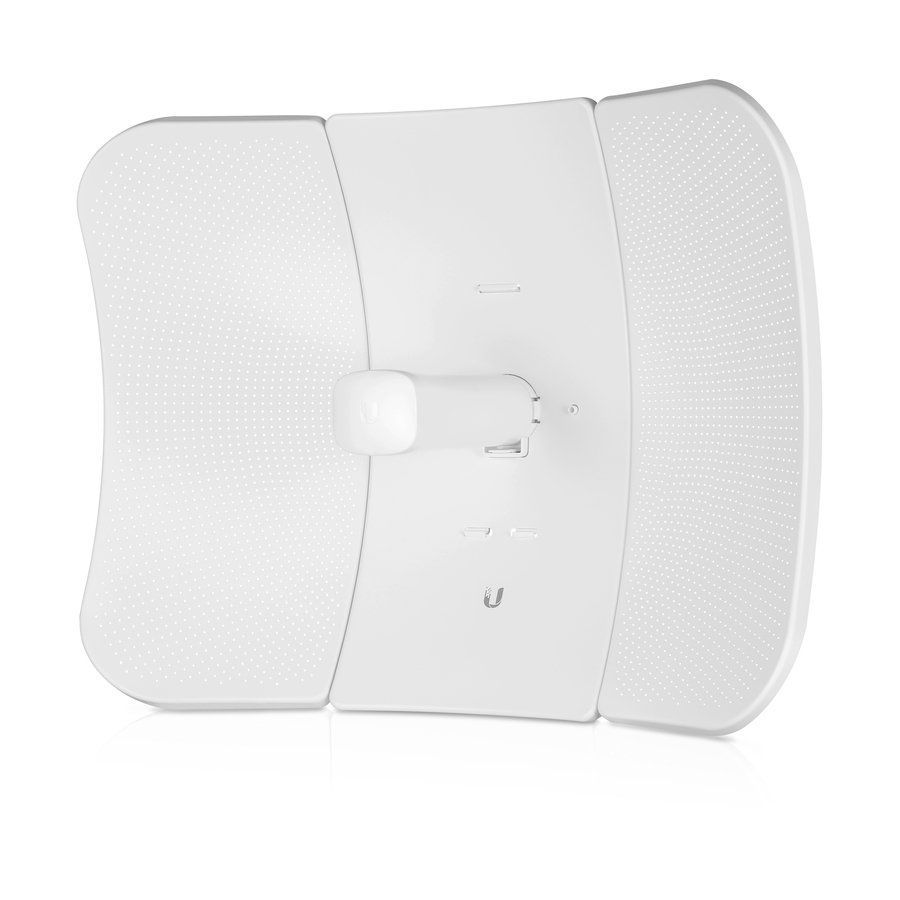

Designed for long-range applications, the LTU LR is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
Proprietary LTU Technology
Based on Ubiquiti's LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput and modulation rates of up to 4096QAM.
CPE Modes
The LTU LR supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split
The LTU LR can use different frequencies for TX and RX to avoid interference
Improved Noise Immunity
The LTU LR directs RF energy in a tighter beamwidth. With the focus in one direction, the LTU LR blocks or spatially filters out noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.
Innovative Design
Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of a 26 dBi antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Quick Mounting and Alignment
The LTU LR features a large reflector size and easy elevation adjustment (azimuth is adjusted by rotation around the pole).
Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include the following:
- 10 MHz
- 20 MHz
- 30 MHz
- 40 MHz
- 50 MHz
- Up to 100 MHz
By default, the Auto Output Power option allows the LTU LR to set the output power (EIRP) to the appropriate level.
Signal Control
The LTU LR's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.
Convenient Configuration
To manage the LTU LR, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU LR.
Within the LTU Configuration Interface, you can manually configure the LTU LR or manage it from the AP side using the Find My AP feature. The LTU LR will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU LR.
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- 600 Mbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity
- Up to 10x faster than standard Ethernet connectivity for your wired network
- With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
- Pole-mountable form factor offers comfortable usage for a longer duration
| Brand | |
|---|---|
| Brand | Ubiquiti Inc. |
| Networking & Connectivity | |
|---|---|
| Wireless Transmission Speed | 600 Mbit/s |
| Frequency Band | 5 GHz |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Pole-mountable |
| General Features | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
