Ideal for WISP Applications

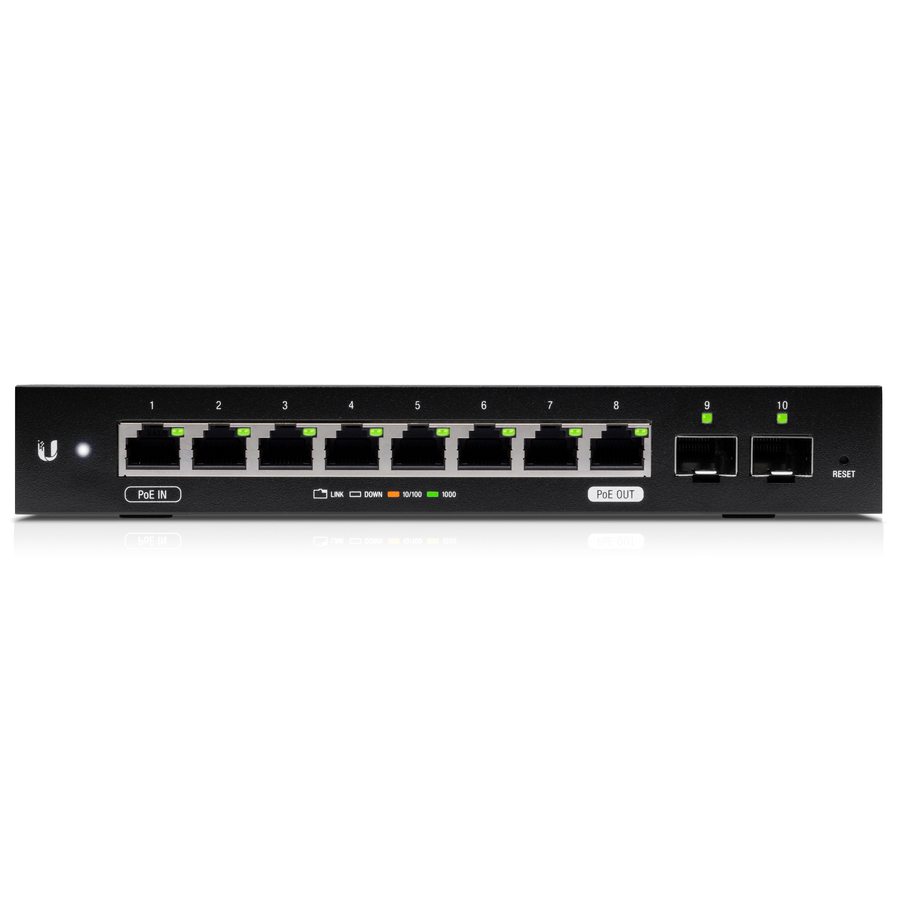

Eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 8. Two SFP ports offer fiber connectivity
Optimized Power Consumption
The EdgeSwitch 10X consumes 50% less power than the previous-generation EdgeSwitch XP, allowing for passive cooling.
Layer 2 Switching Capacity
The EdgeSwitch 10X supports an extensive suite of advanced Layer 2 switching features and protocols.
Versatile Mounting Options
The EdgeSwitch 10X can be mounted on a wall or in a rack (rackmount accessory, model ER-RMKIT, sold separately).
Simple UI
The new UI is easy to learn and allows you to monitor and configure features through its intuitive graphical user interface.
Centralized Management
The EdgeSwitch 10X is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
- Wall- or Rack-Mountable
- DC Jack Supports Battery Backup with EdgePower TM (sold separately)
- Powered by 24V Passive PoE or External AC/DC Adapter
- Supports PoE Input on Port 1
- Software-selectable PoE Passthrough on Port 8
- Forwarding Rate: 14.88 Mpps
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- (8) Gigabit RJ45 Ports
- (2) SFP Ports
| Brand | |
|---|---|
| Brand | Ubiquiti Inc. |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 8 |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Ubiquiti Inc. |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
