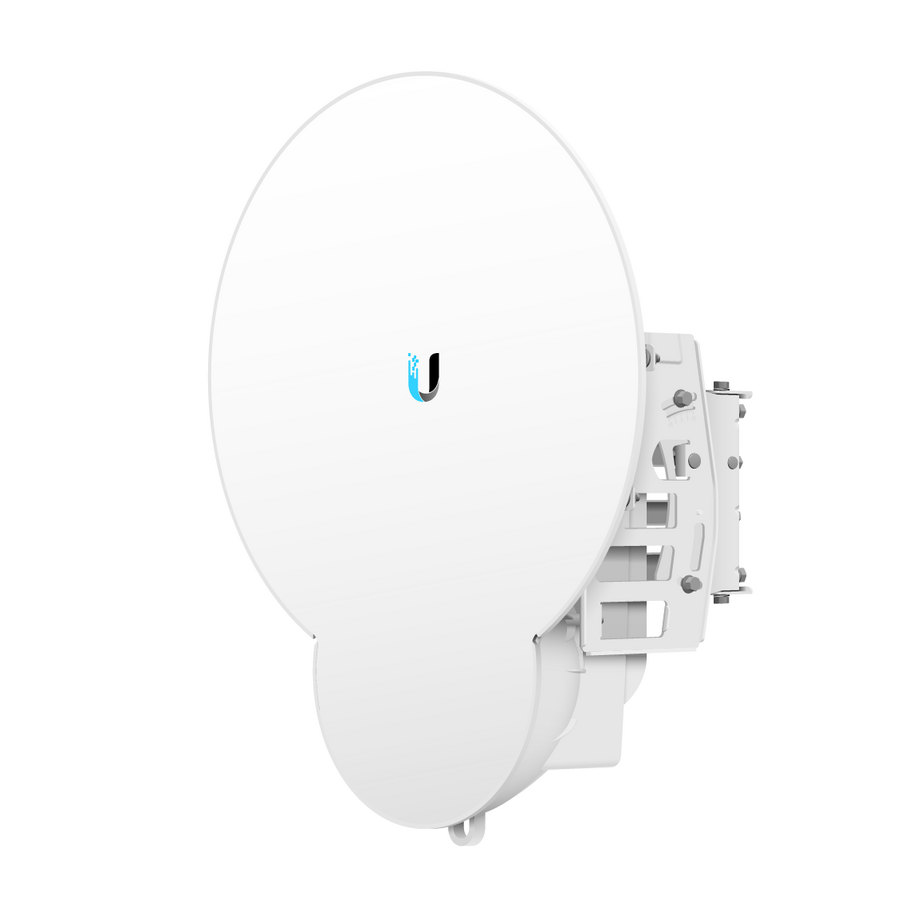

Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.
Revolutionary Performance
Featuring the world's best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
Proven Links: 20+ km
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range - up to 20+ km - among 24 GHz products and allows for constellation threshold extension.
Low-Latency Carrier Backhaul
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
- Worldwide License-Free Operation
- Extreme, Long-Range Links
- High Performance Wireless Backhaul
| Brand | |
|---|---|
| Brand | Ubiquiti Inc. |
| Networking & Connectivity | |
|---|---|
| MIMO Technology | Yes |
| Powerline | No |
| Wireless Transmission Speed | 2 Gbit/s |
| Frequency Band | 24 GHz |
| Outdoor Antenna Range | 12.4 Mile |
| USB Ports | |
|---|---|
| USB | No |
| HDMI Ports | |
|---|---|
| HDMI | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| PoE (RJ-45) Port | No |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Pole-mountable |
| Diameter | 30.2" |
| General Features | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Video Ports | |
|---|---|
| VGA | No |
| Misc Ports | |
|---|---|
| Management Port | Yes |
