Tycon Power (TP-DCDC-4856G-VHP) 36-72VDC In, 56VDC 70W Passive POE Out DCDC

219.99 219.99
219.99

219.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Protection Type
  • Form Factor
  • Output Ports
  • Input Ports
  • Input Voltage
  • Maximum Output Voltage
  • Maximum Output Current
  • Environmentally Friendly
  • Certifications & Standards
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Compatibility
  • Manufacturer Website Address
  • Maximum Output Power
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

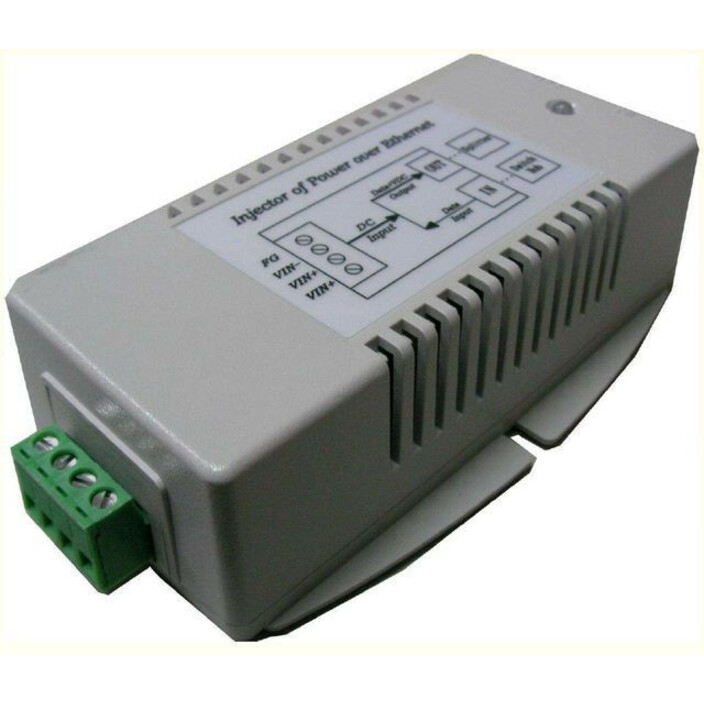

The TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber™ antennas and also various outdoor PTZ security cameras.

The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires.

They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

Brand
Brand Tycon Power Systems
Power & Battery
Input Voltage 72 V DC
Maximum Output Voltage 56 V DC
Maximum Output Current 1.25 A
Maximum Output Power 70 W
Size / Dimensions
Form Factor External
General Features
Protection Type Over Voltage
Manufacturer Tycon Power Systems
Misc Ports
Output Ports 1 x Gigabit Ethernet
Input Ports 1 x Gigabit Ethernet
Compliance & Certification
Environmentally Friendly Yes
