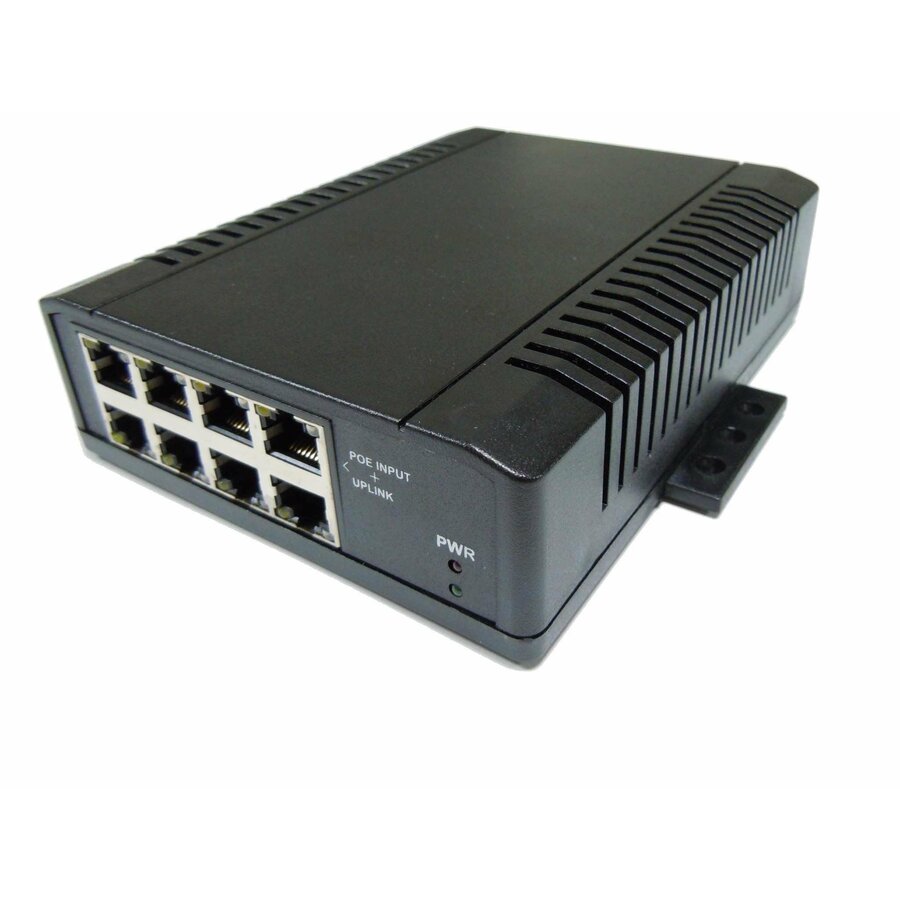

The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
- Effectively reduces downtime with improved network performance
- Electrical power is transmitted along with data in a single cableto devices such as Access Points, IP cameras or IP phones
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rail-mountable form factor for your convenience and simplicity of usage
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Twisted Pair media support for efficient and reliable connectivity
| Brand | |
|---|---|
| Brand | Tycon Power Systems |
| Power & Battery | |
|---|---|
| Power Source | PoE |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 10/100Base-TX |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| LRE Port | No |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Number of PoE (RJ-45) Ports | 8 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Tycon Power Systems |
| Misc Ports | |
|---|---|
| Management Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 1 x Fast Ethernet Uplink |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5 |
| Miscellaneous | |
|---|---|
| Bypass | No |
