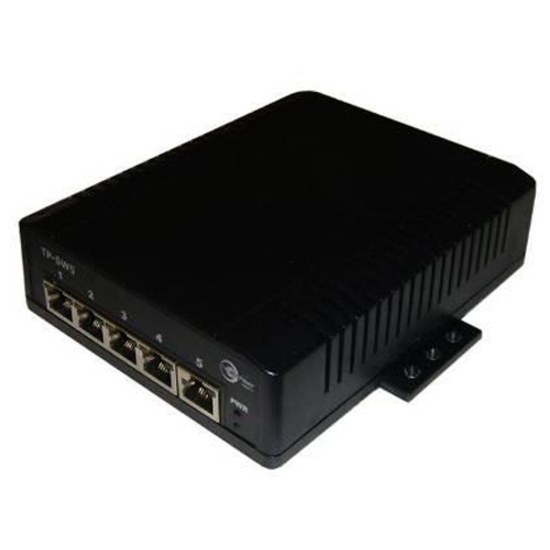

The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:
TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.
TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.
TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.
TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.
- Effectively increases available bandwidth on your network
- Cascade to other network devices through the uplink port to expand your local area network
- Electrical power is transmitted along with data in a single cableto devices such as Access Points, IP cameras or IP phones
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The switch is rail mountable, you can easily install it in racks with concrete stability
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Tycon Power Systems |
| Power & Battery | |
|---|---|
| Power Source | PoE |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| LRE Port | No |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Number of PoE (RJ-45) Ports | 5 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manufacturer | Tycon Power Systems |
| Misc Ports | |
|---|---|
| Management Port | No |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Uplink |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Bypass | No |
