Rack Cooling Fans for 45U Standard-Width Enclosures

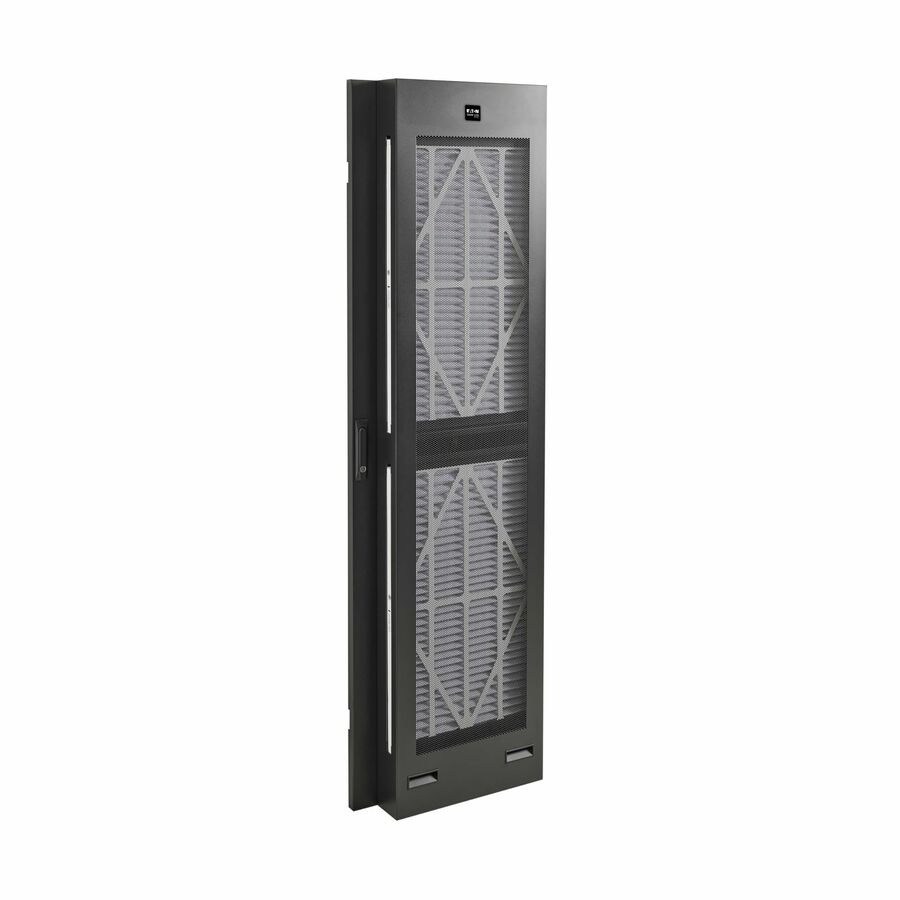

The SmartRack® SRFFD4524 is a server rack door with cooling fans and air filters integrated into it. Designed specifically for SmartRack's 45U standard-width rack enclosures, these fans help keep rack-mounted equipment cool to maintain top performance and avoid failures that can lead to costly downtime, damage or data loss.
Increases Airflow and Helps Keep Air Intake Clean
The SRFFD4524 includes four separate fan panels with four 120V fans per panel (16 fans total) with each fan providing a maximum airflow of 82CFM at 50Hz and 93CFM at 60Hz. It also comes with a perforated outer panel to allow air to pass through, fan guards and two pre-installed dust filters.
Plug-and-Play Construction for Easy Installation
All necessary toolless mounting hardware is included. The SRFFD4524 is made from heavy-duty cold-rolled steel with a black finish. The six-foot power cords with NEMA 5-15P plugs connect to any compatible wall outlet, PDU or UPS system.
- Helps boost rack equipment performance by increasing airflow through the enclosure
- Includes 16 high-performance 120V fans pre-mounted in 4 separate door panels
- Dust filters come pre-installed in the fan door assembly's front door to keep air clean
- Plug-and-play operation with all necessary toolless mounting hardware included
- Includes 4 C13 to 5-15P input cords connect to the door's C14 power inlets
- 2-year limited warranty
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 45U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cable Length | 72" |
