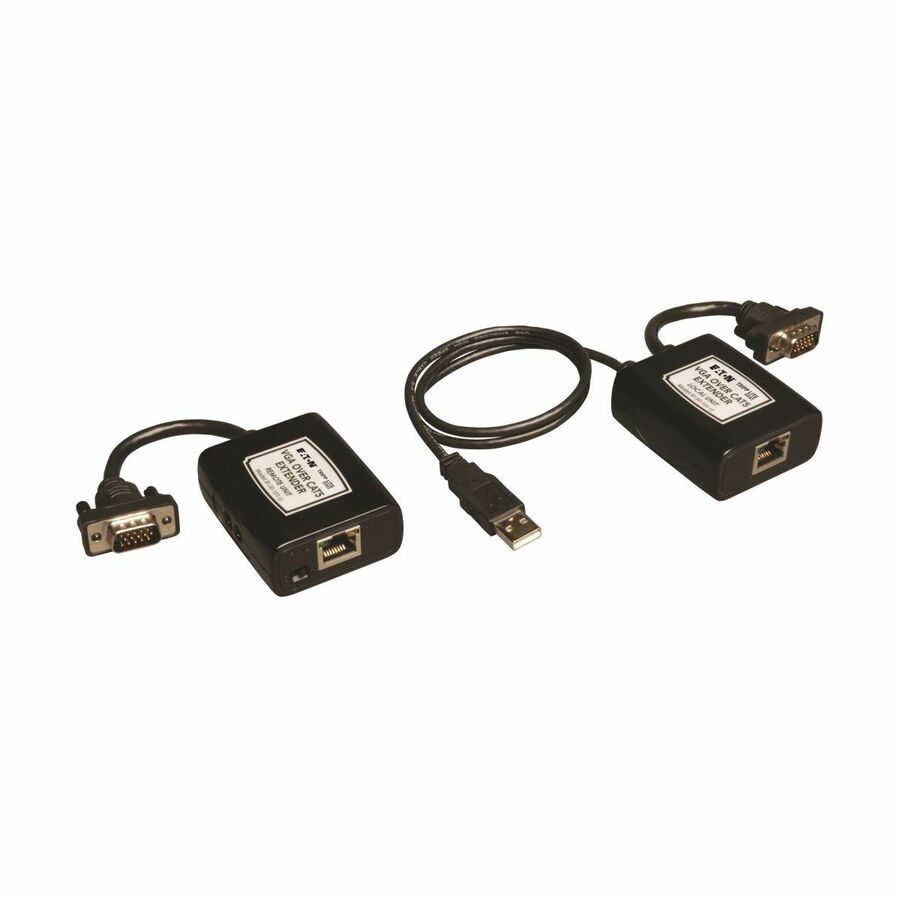

This VGA over Cat5 extender kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350', or a 1024 x 768 (60Hz) signal up to 500', when using 24Awg, Solid Wire Cat5e/6 cable (sold separately). Extender draws power directly from a USB connection at the computer to eliminate the need for an external AC adapter. Receiver unit includes Gain adjustment for brightness and darkness control, and Equalization adjustment for sharp, clear images. VGA dongles allow for direct attachment to video equipment without requiring a VGA cable. Extender kit is perfect for digital signage applications, classroom or auditorium projectors, and more.
- Built-in VGA dongles...no need for additional VGA cables
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- USB-powered...no external AC power needed
- Extends a 1920 x 1440 (60Hz) signal up to 350 ft., or a 1024 x 768 (60Hz) signal up to 500 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1440 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 500 ft |
| Manufacturer | Eaton Corporation |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Outputs | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
