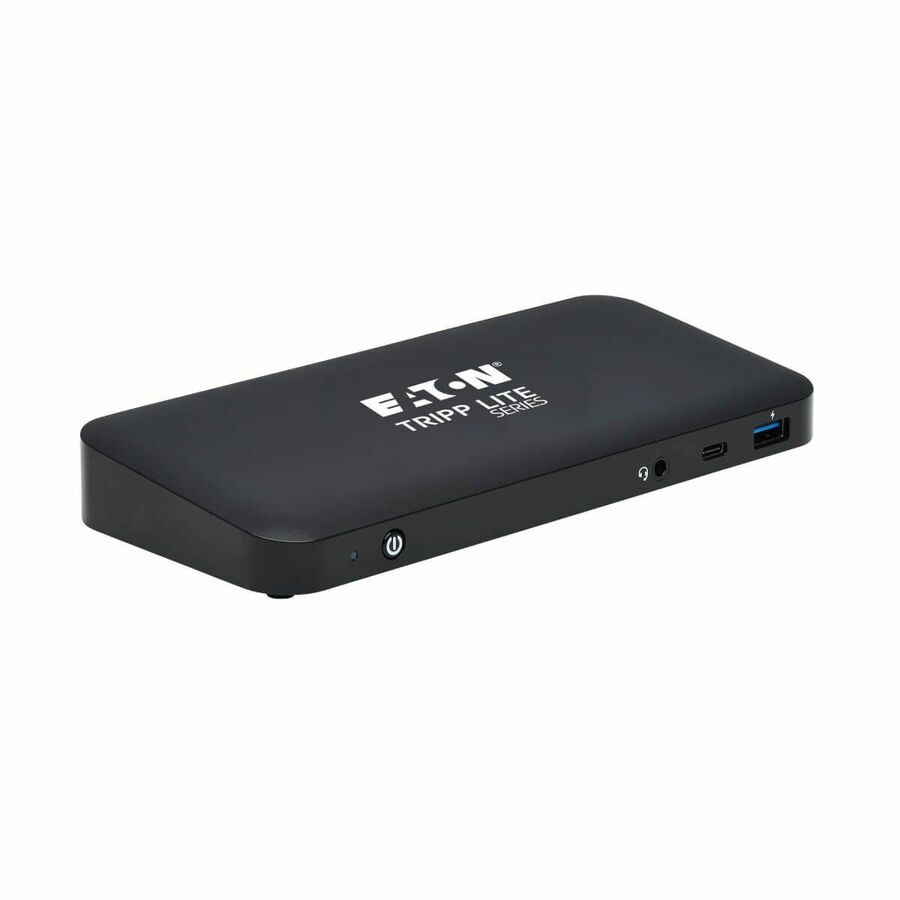

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into 10 New Ports
This universal USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, MacBook Pro, smartphone or PC's USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 10 ports to your device:
- 4K HDMI
- (2x) 4K DisplayPort
- RJ45 Gigabit Ethernet
- USB 3.2 Gen 2 Type-C
- (3x) USB 3.2 Gen 2 Type-A
- USB-C PD charging
- 3.5 mm mini stereo
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Transmits Crystal-Clear 4K Video and Digital Audio with 4:4:4 Color
The DisplayPort and HDMI outputs support single-monitor 4K resolutions up to 3840 x 2160 at 60 Hz with 2.1-channel surround sound. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This dock also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
- HDMI and DisplayPort outputs each support single-monitor 4K applications @ 60 Hz
- Extends 1080p desktop image across 3 screens @ 30 Hz and 2 screens @ 60 Hz
- Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
- USB-C and USB-A hub ports allow connection of flash drives and other peripherals
- Power Delivery port supports 20V 4.25A (85W) power output for charging source device
- 3-year limited warranty
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 4K |
| Supported Resolutions | 1920 x 1080 |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 85 W |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 3 |
| Total Number of USB Ports | 5 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 1 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Portable |
| Security | |
|---|---|
| Kensington Security Slot | Yes |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Compatibility | Apple |
| Misc Ports | |
|---|---|
| Host Interface | USB Type C |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
