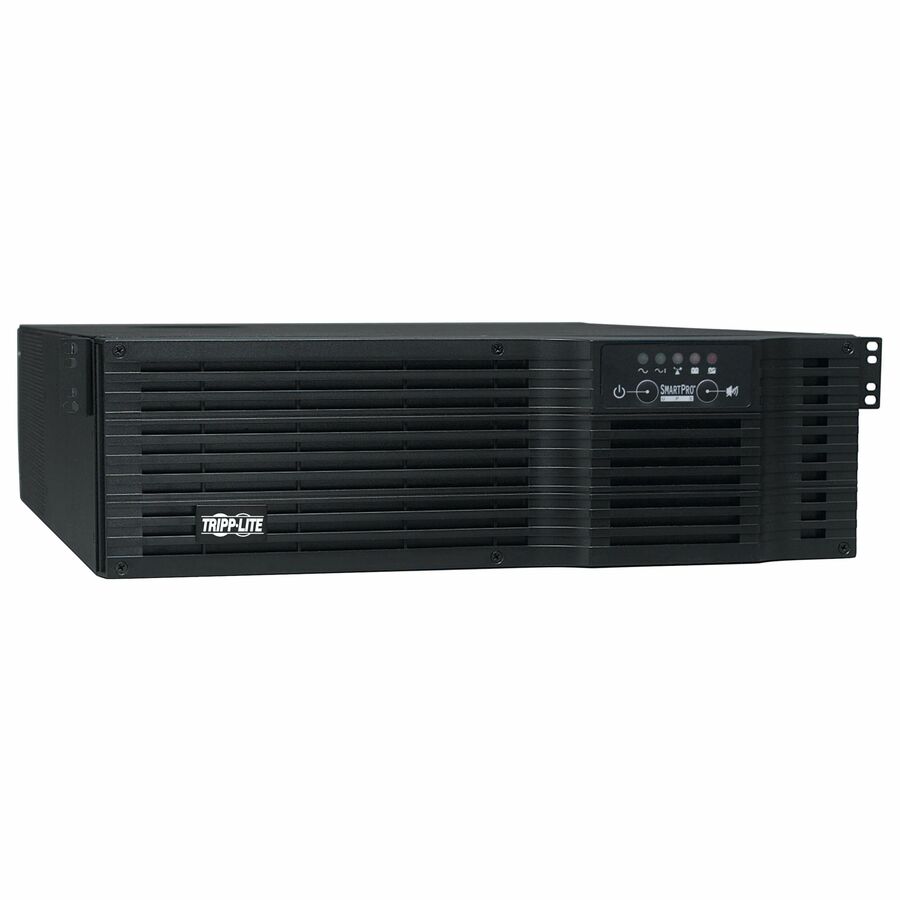

Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
- C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
- 95% line-mode efficiency, 2 switched load banks
- USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
- Maintains 120V output with 120V or 230V input, Sine wave output
- 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Typical Battery Recharge Time | 4.50 Hour |
| Input Voltage | 220 V AC |
| Output Voltage | 120 V AC |
| Input Current | 16 A |
| Load Capacity (Watt) | 1920 W |
| Load Capacity (VA) | 2200 VA |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 30 Minute |
| Transfer Time | 4 ms |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Eaton Corporation |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS |
