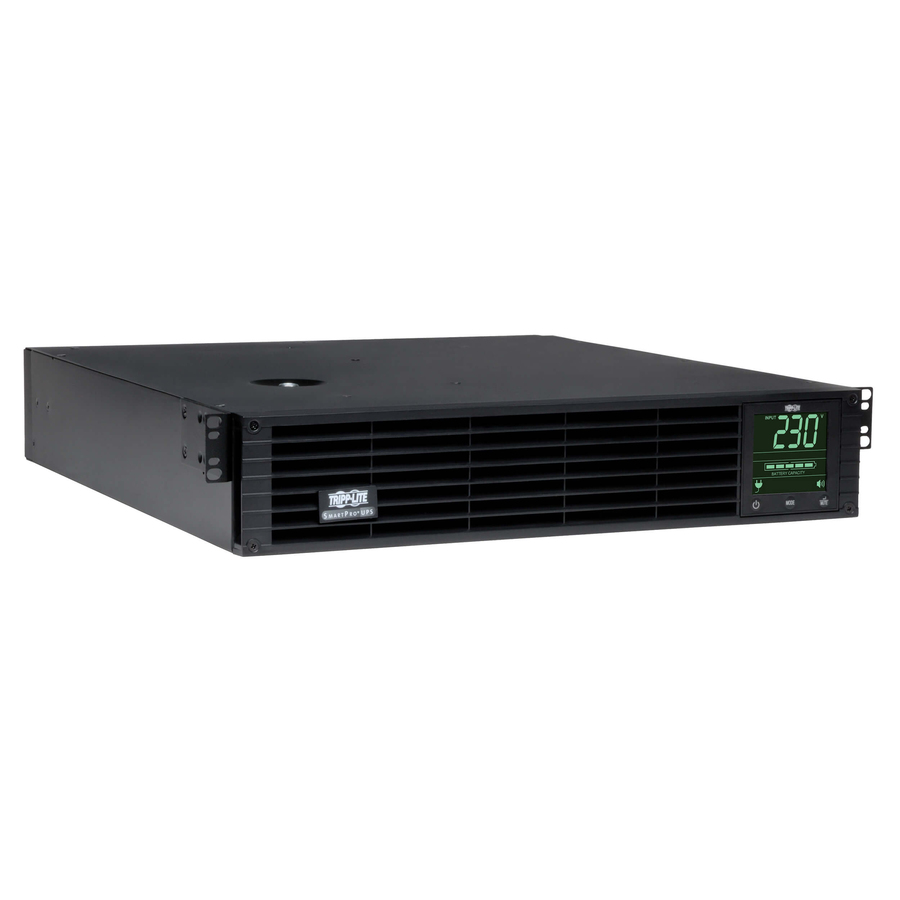

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
- USB, RS232, EPO and slot for SNMPWEBCARD option
- 230V C20 inlet, 8 C13 outlets
- Extended runtime options up to 1600W
- 4 post compatible mounting accessories
- 98% line-mode efficiency, 2 switched load banks
- 0.9 Power Factor, Interactive LCD interface
- 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
- 230V output, Corrects brownouts and overvoltages from 158V to 278V
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; Individually controllable load banks |
| Circuit Breaker | Yes |
| EPO Port | Yes |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C20 |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 4.50 Hour |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Input Current | 10.70 A |
| Load Capacity (Watt) | 1920 W |
| Load Capacity (VA) | 2200 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 48 V DC |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Transfer Time | 6 ms |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 350 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Remote Shutdown |
| Protection Type | RFI |
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 47.18 W |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332124562 |
| MPN | SMX2200XLRT2U |
| Unit Count | 1 Units |
| Warranty | 2 Year |
