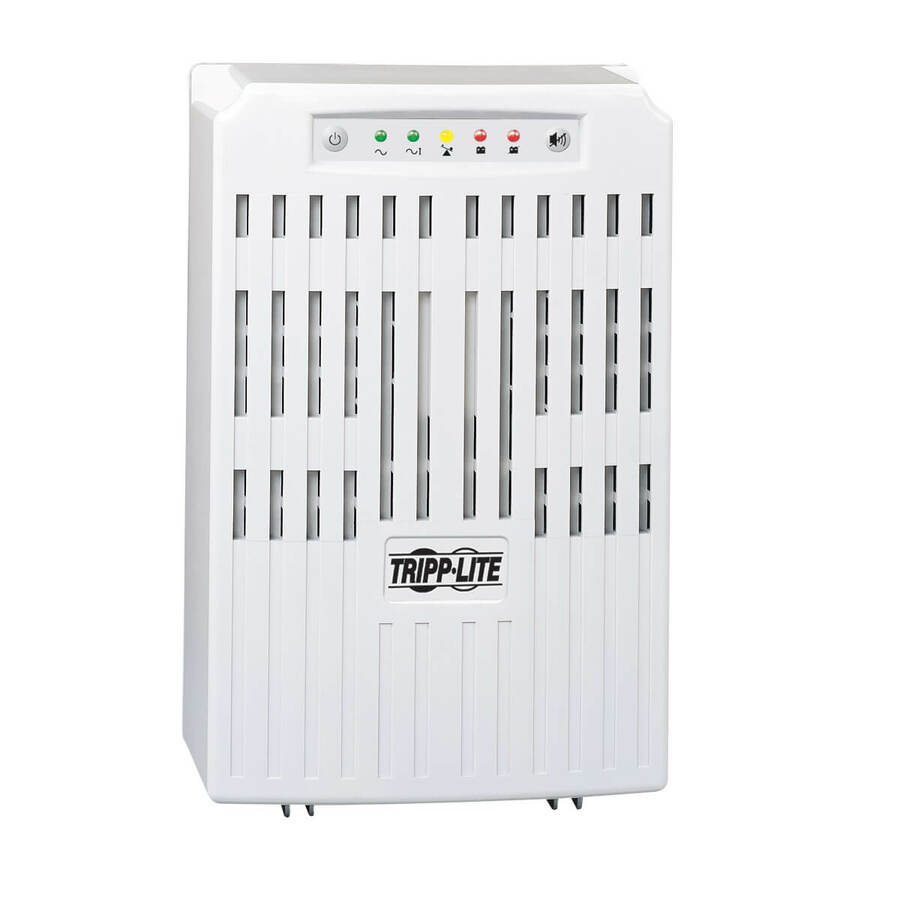

Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.6kW Line-Interactive UPS Tower Network Card Options USB DB9 Serial

1,333.96 1,333.96
1,333.96

1,333.96 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Emergency Power OFF
  • Network Management
  • Hot Swappable
  • Status Indicators
  • Alarm
  • USB
  • Cord Length
  • Total Number of Expansion Slots
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Battery Life
  • Battery Chemistry
  • Typical Battery Recharge Time
  • Maximum Operating Temperature
  • Input Voltage
  • Output Voltage
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
  • Transfer Time
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

More from the Manufacturer

  • NEMA 5-20P input; 2 NEMA 5-15/20R & 7 5-15R outlets
  • USB, RS232, EPO and optional SNMP/Web card are available for simultaneous use
  • Front panel status LEDs with load and battery capacity level display
  • 120V nominal output during brownouts to 79V and overvoltages to 147V
  • 2.2kVA / 2200VA line interactive tower UPS system
Brand
Brand Eaton Corporation
Power & Battery
Emergency Power OFF Yes
Receptacle Detail 2 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Type NEMA 5-20P
Battery Life 6 Year
Battery Chemistry Lead Acid
Typical Battery Recharge Time 4 Hour
Input Voltage 120 V AC
Output Voltage 120 V AC
Load Capacity (Watt) 1600 W
Load Capacity (VA) 2200 VA
Backup/Run Time (Full Load) 7 Minute
Backup/Run Time (Half Load) 19 Minute
Transfer Time 4 ms
Networking & Connectivity
Network Management SNMP Manageable
USB Ports
USB Yes
Size / Dimensions
Form Factor Tower
General Features
Hot Swappable Yes
Alarm Low Battery
Manufacturer Eaton Corporation
Expansion Slots
Total Number of Expansion Slots 1
Cables
Cord Length 8 ft
Compliance & Certification
Maximum Operating Temperature 104°F (40°C)
