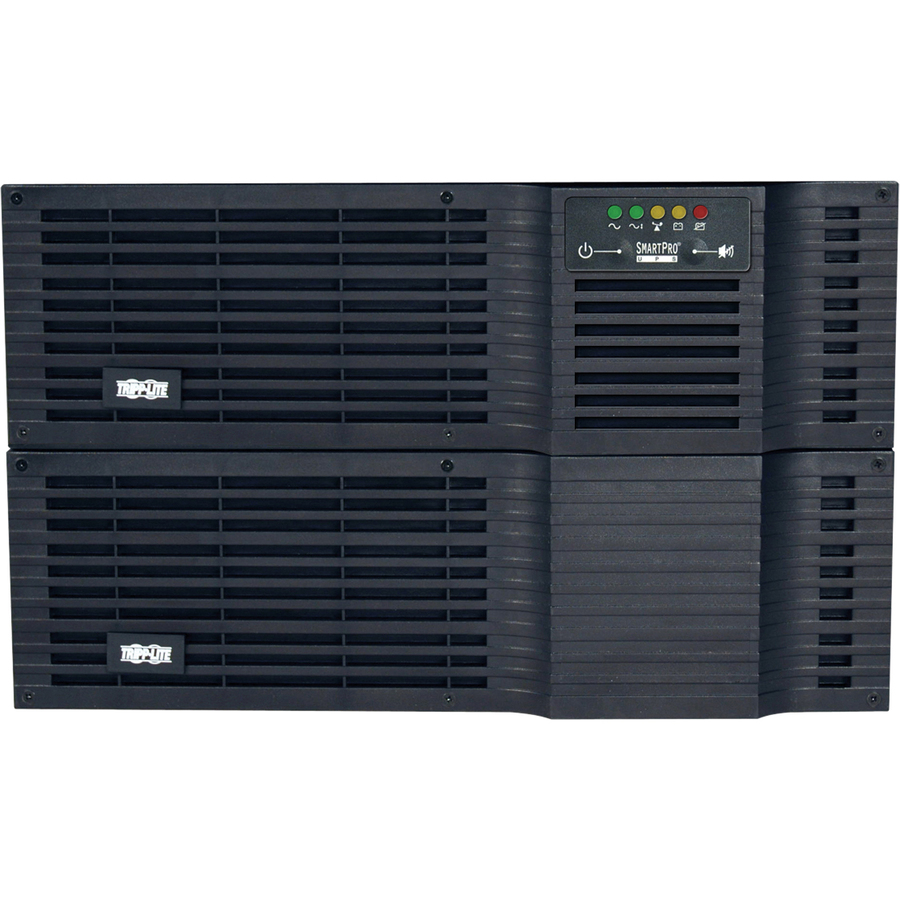

Tripp Lite by Eaton UPS Smart 5000VA 4000W Rackmount AVR 208V/120V Pure Sign Wave 5kVA USB DB9 6URM

$ 5,208.35 $ 5,208.35
$ 5,208.35

$ 5,208.35 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Emergency Power OFF
  • Network Management
  • Hot Swappable
  • Status Indicators
  • Alarm
  • USB
  • Cord Length
  • Total Number of Expansion Slots
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Rack Height
  • Battery Life
  • Battery Chemistry
  • Typical Battery Recharge Time
  • Maximum Operating Temperature
  • Input Voltage
  • Output Voltage
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Manufacturer Website Address
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
  • Transfer Time
  • Waveform Type
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. 2 Year Warranty standard. 3 Year Warranty with product registration.

More from the Manufacturer

  • NEMA L6-30P input; 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets
  • Expandable runtime; 8 single-outlet switched output load banks
  • USB, Serial, EPO & optional SNMP/Web card monitoring options
  • 208 & 120V output during brownouts to 151V and overvoltages to 260V
  • 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS; Sine wave output
Brand
Brand Eaton Corporation
Power & Battery
Emergency Power OFF Yes
Receptacle Detail 1 x NEMA L6-30R
Receptacle Type NEMA L6-30R
Plug/Connector Type NEMA L6-30P
Battery Life 6 Year
Battery Chemistry Lead Acid
Typical Battery Recharge Time 4 Hour
Input Voltage 220 V AC
Output Voltage 208 V AC
Load Capacity (Watt) 4000 W
Load Capacity (VA) 5000 VA
Backup/Run Time (Full Load) 16 Minute
Backup/Run Time (Half Load) 38 Minute
Transfer Time 4 ms
Waveform Type Sine Wave
Networking & Connectivity
Network Management SNMP Manageable
USB Ports
USB Yes
Size / Dimensions
Rack Height 6U
General Features
Hot Swappable Yes
Alarm Low Battery
Manufacturer Eaton Corporation
Expansion Slots
Total Number of Expansion Slots 1
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 104°F (40°C)
