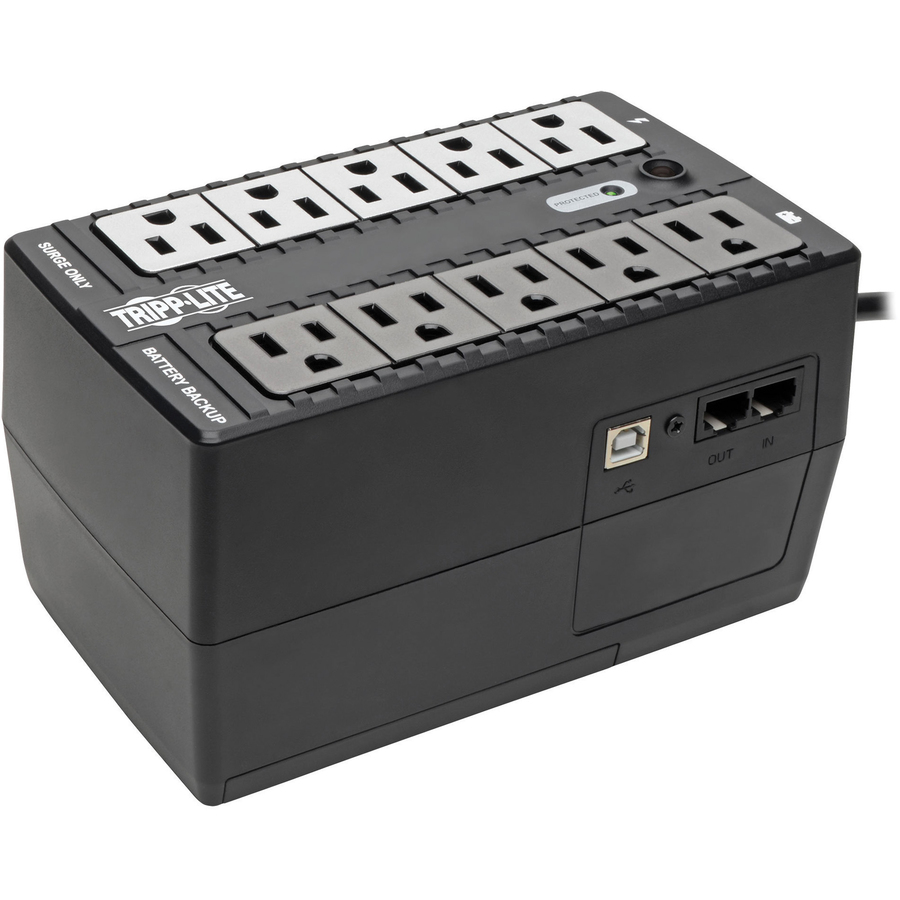

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Two of the 8 output receptacles are widely spaced to accommodate large transformer plugs. Four outlets with full battery support and surge suppression protect computers, monitors and other vital system components from loss of power. Four additional outlets with surge suppression-only are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 550VA/300 watt power handling ability supports entry-level PCs for up to 17 minutes during power failures.
- $100,000 Ultimate Lifetime Insurance
- 3-year limited warranty
- High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- 10 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 5 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| EMI/RFI Noise Filter | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Receptacle Detail | 10 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 5 |
| Typical Battery Recharge Time | 6.50 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 12 A |
| Load Capacity (Watt) | 300 W |
| Load Capacity (VA) | 550 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Transfer Time | 6 ms |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| General Features | |
|---|---|
| Alarm | Replace Battery |
| Protection Type | Over Voltage |
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cord Length | 5 ft |
| Compliance & Certification | |
|---|---|
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Recycled | No |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
