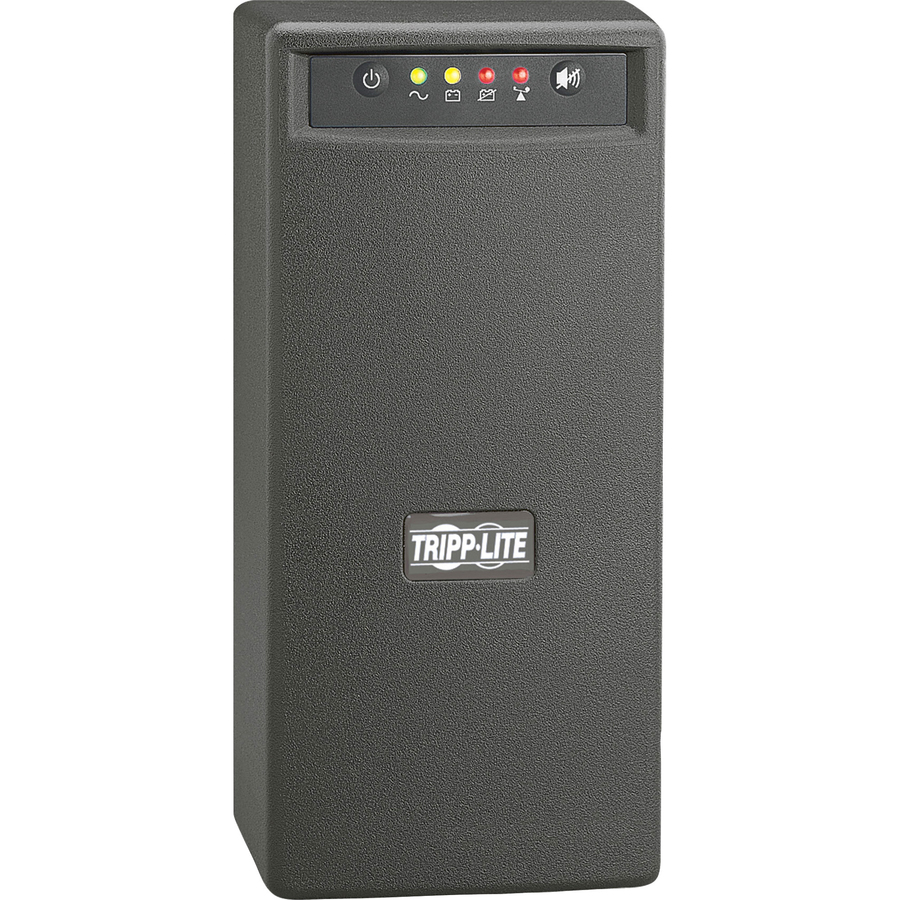

Line interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line RJ phone suppression jacks protect modem, fax machine or cordless phone with a standard dial-up/DSL phone connection. Offers 7-minute battery runtime with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts.
- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
- USB port, TEL/DSL/ethernet protection
- Corrects brownouts as low as 89V without using battery power
- 6 UPS battery supported outlets, 2 surge-only outlets
- 1000VA / 1kVA tower 120V line interactive UPS
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Dataline Protection | RJ-45 |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 500 W |
| Load Capacity (VA) | 1000 VA |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 480 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Alarm | On Battery |
| Protection Type | Surge |
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Recycled | No |
| Miscellaneous | |
|---|---|
| Product Name | 8-Outlet Line Interactive UPS System |
| Assembly Required | No |
