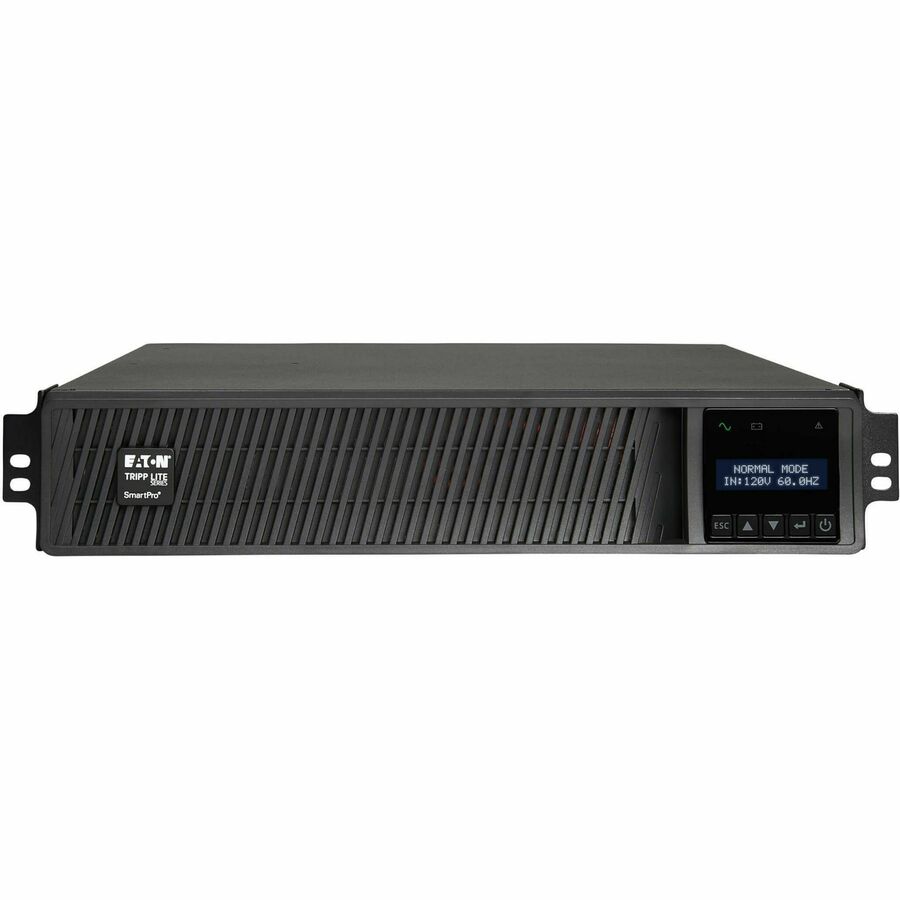

This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART2200RMXLN is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately).
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-20R Outlets Protect Your Connected Components
One L5-20R and six managed 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RMXLN maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
- Included WEBCARDLXE network interface allows 24/7 remote monitor and control..
- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
- Unity power factor ensures maximum power possible at each power rating
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, transient surges and line noise
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Overload Protection | Yes |
| EPO Port | Yes |
| Receptacle Detail | 1 x NEMA L5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 4.50 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1950 W |
| Load Capacity (VA) | 1950 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 1.0 |
| DC System Voltage | 72 V DC |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 380 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/Web |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Low Battery |
| Manufacturer | Eaton Corporation |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 32808 ft |
| TAA Compliant | Yes |
