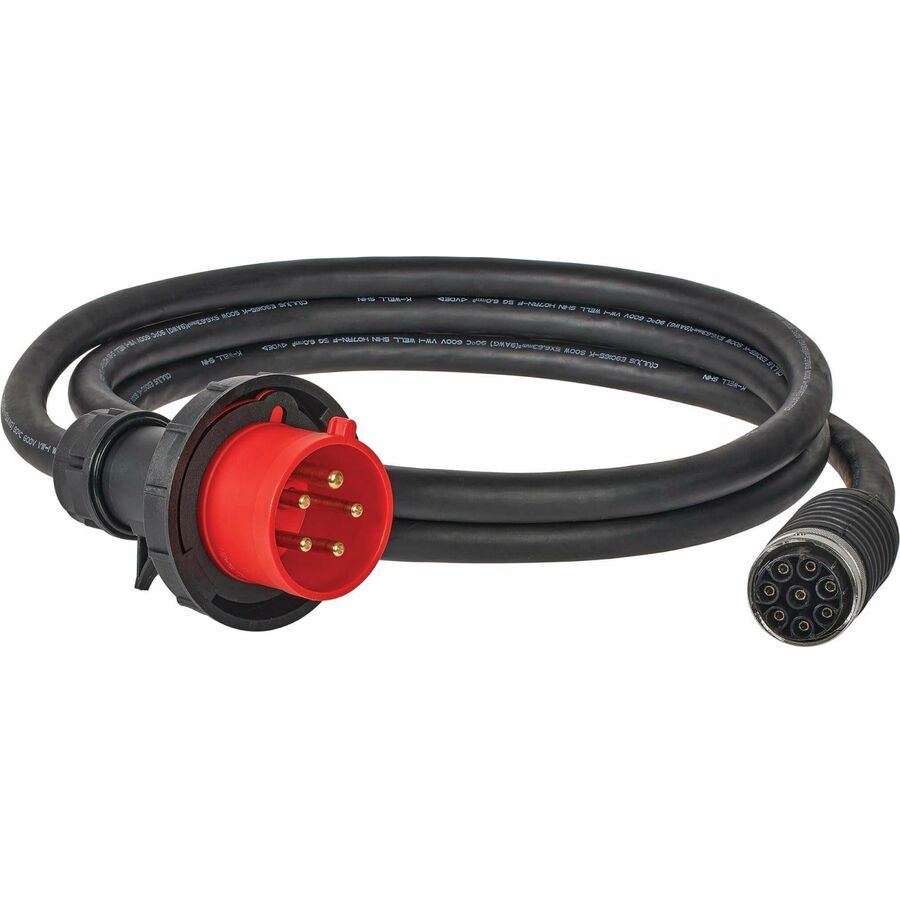

Detachable Power Cord Supports Universal Input PDU
This detachable power cord is designed for 240/415V Wye (North America) or 230/400V Wye (Europe/Asia) 3-phase use. Its 8-pin universal connector mates with the EVMAGU23X-3 G3 universal input PDU (UPDU) to meet your diverse rack-power needs. The 10-foot (3.05-meter) length with 532P6W input plug allows you convenient flexibility in placing the UPDU with respect to the AC outlet.
- Delivers 17.3kVA or 22.1kVA 3- phase power to Eaton's EVMAGU23X-3 G3 UPDU
- 10 ft. length allows flexibility in placing PDU in relationship to AC outlet
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Current Rating | 32 A |
| Voltage Rating | 400 V AC |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cord Length | 10.01 ft |
| First End Connector Type | 532P6W |
| First End Connector Detail | 1 x 532p6w |
| Second End Connector Type | 8-pin Souriau UTG |
| Second End Connector Detail | 1 x8-pin souriau utg |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Environmentally Friendly | Yes |
