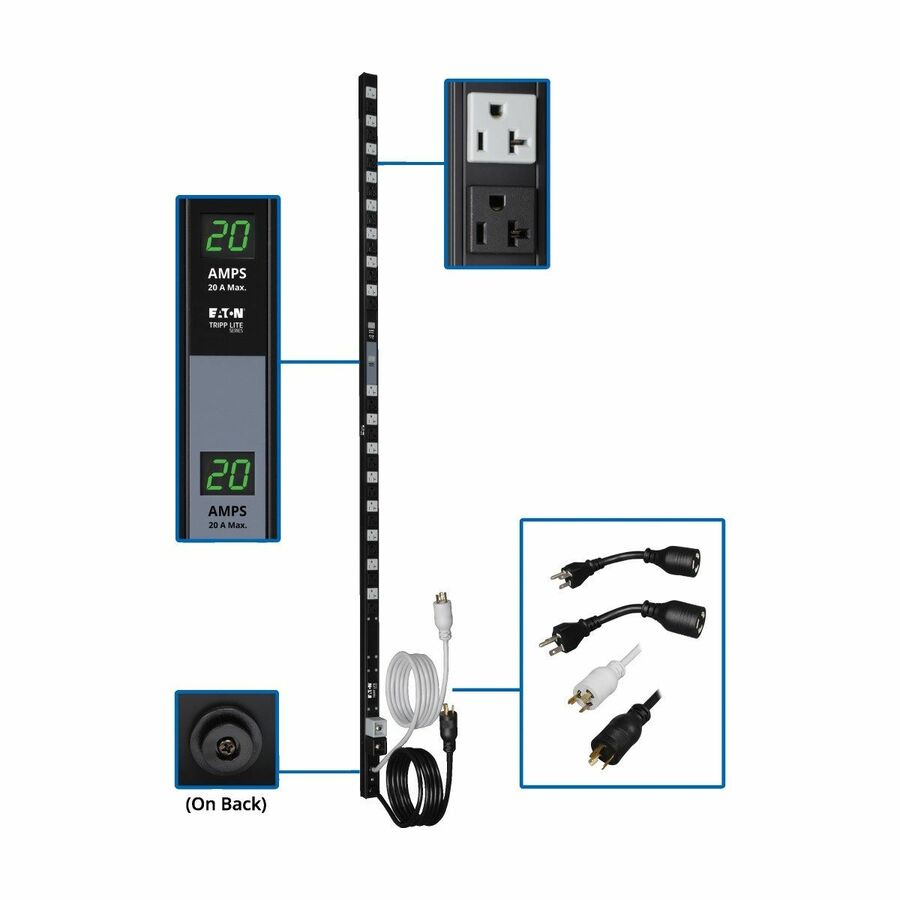

The PDUMV40 provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. Dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts32 outlets and 4,800 watts total capacity without consuming additional rack space.
- Supports connection to NEMA L5-20R or 5-20R 120V 20A wall receptacle
- Color-coded input power cords for each circuit
- Two 20A independent circuits of 16 outlets each
- 32 NEMA 5-15/20R 120V outlets color coded for each circuit
- Dual Independent Current Monitoring Displays
- Dual Circuit 71 inch PDU
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 4800 W |
| Receptacle Detail | 32 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Plug/Connector Detail | 2 x NEMA L5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Number of Cord/Cable | 2 |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332132505 |
| MPN | PDUMV40 |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
