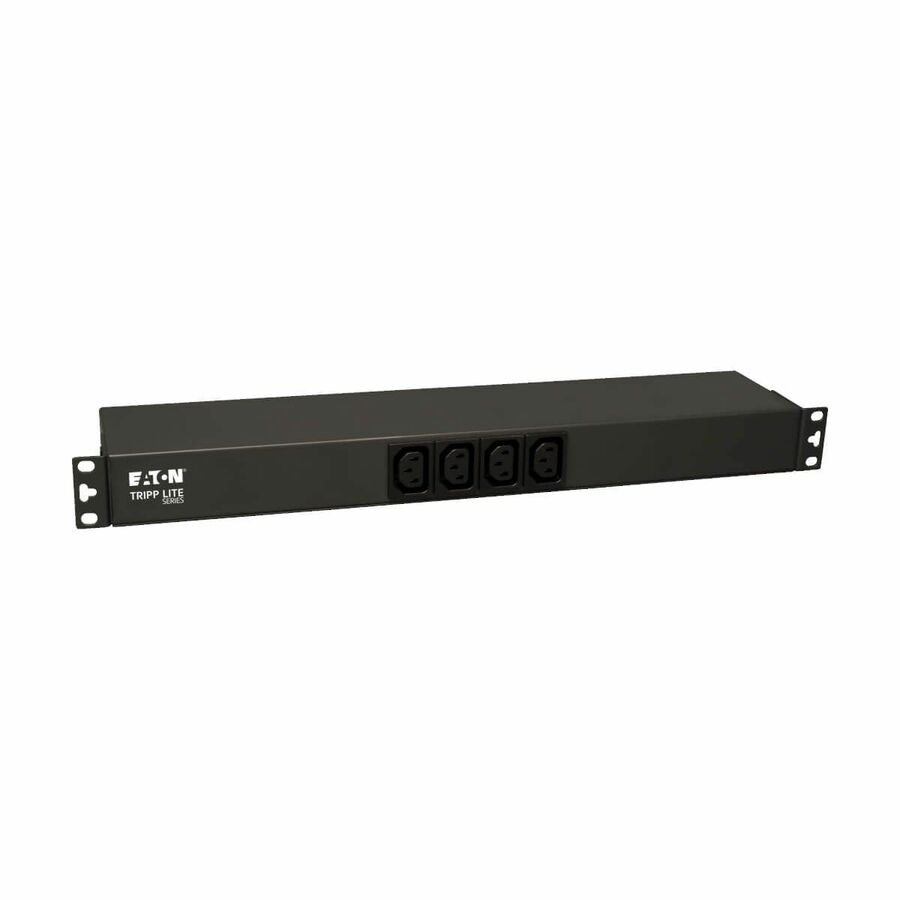

Tripp Lite's PDUH20HVL6 Basic PDU / power distribution unit offers 20A 208/240V power distribution in rack enclosures, network closets and datacenter applications. Detachable mounting flanges are configurable for 1U horizontal and 0U vertical rackmount installation with additional support for secure wallmount and under-counter placement. Attached 15 ft. / 4.5m line cord with L6-20P input plug. Includes 4 front-facing and 8 rear-facing C13 outlets (12 total), plus 2 rear-facing C19 outlets. Ideal for power distribution in rack enclosures, network closets and a variety of other application types. Includes back panel grounding lug, reversible housing and rugged all-metal case design.
- 2 C19 and 12 C13 outlets
- 1U horizontal rackmount installation
- L6-20P input; 15 ft. / 4.5m line cord
- Basic single phase 20A 208/240V PDU
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Receptacle Detail | 14 |
| Plug/Connector Type | NEMA L6-20P |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal/Vertical |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332158970 |
| MPN | PDUH20HVL6 |
| Unit Count | 1 Units |
| Warranty | 5 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
