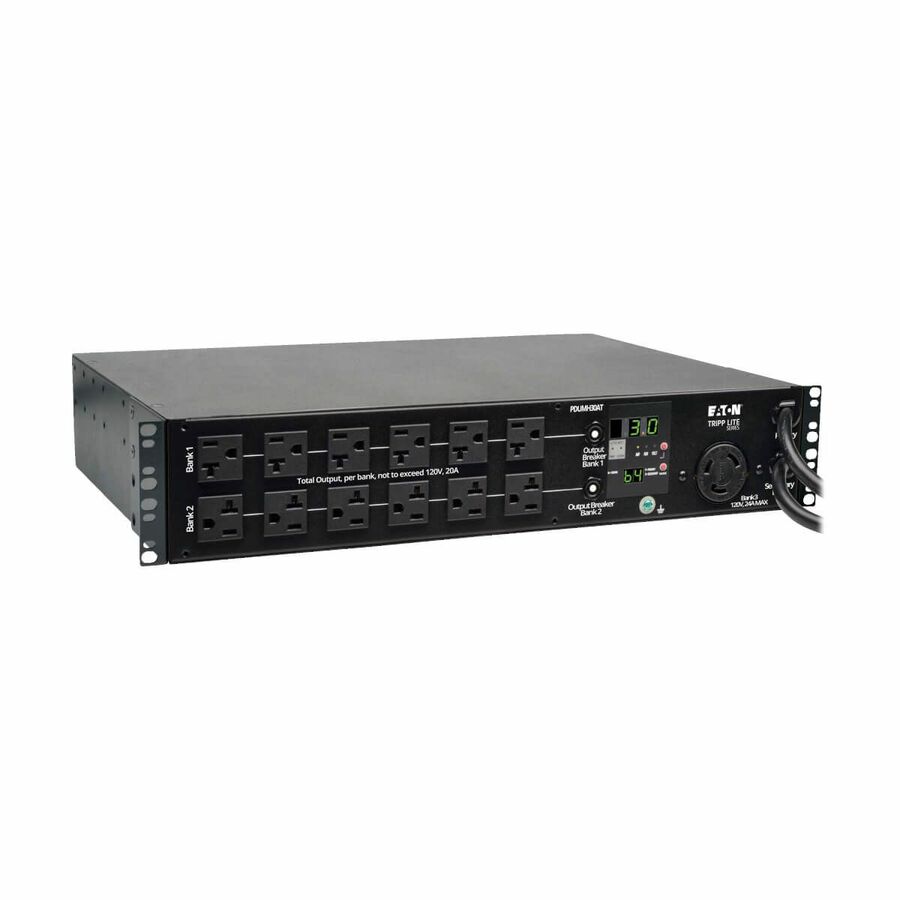

PDUMH30AT Metered ATS / Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement.
- TAA Compliant
- Digital meter reports voltage, kW load level and output amperage in 4 load segments
- 2U horizontal rackmount; 2 L5-30P inputs; 24 5-15/20R & 1 L5-30R outlets
- Separate primary & secondary inputs connect to any two compatible power sources
- Enables redundant A/B power option for single-corded network devices
- Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Type | NEMA L5-30R |
| Plug/Connector Detail | 2 x NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Input Voltage Range | 100 V AC - 127 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Metered PDUMH30AT 25-Outlets PDU |
