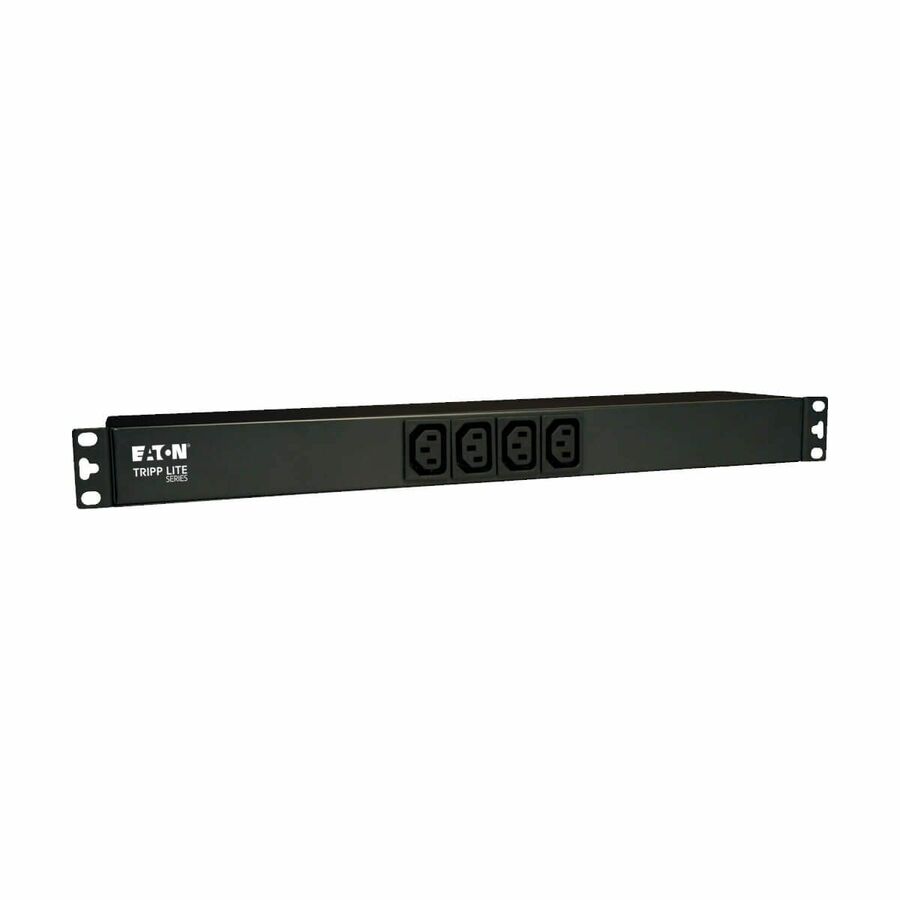

The PDUNV Universal Rackmount PDU offers multi-outlet power distribution for worldwide low and high voltage applications from 100-250V via built-in C19 and C13 outlets. 1U rackmount chassis also supports 0U vertical mount, wall mount and under-counter mount installation in a variety of applications. Attached 10 foot, 3m input cord offers a C20 plug-in connection.
- Reversible housing, 4.25 in. / 10.8cm depth
- Set of 5 plug adapters support C14, L6-20P, L5-20P, 5-20P & 5-15P inputs
- (12) C13 and (2) C19 outlets
- 10 ft. / 3m attached line cord with C20 input
- Configurable for 1U horizontal or vertical rackmount installation
- 16A 100-240V Basic Power Distribution Unit
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Receptacle Detail | 2 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | NEMA L6-20P |
| Input Voltage | 230 V AC |
| Output Voltage | 250 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Eaton Corporation |
