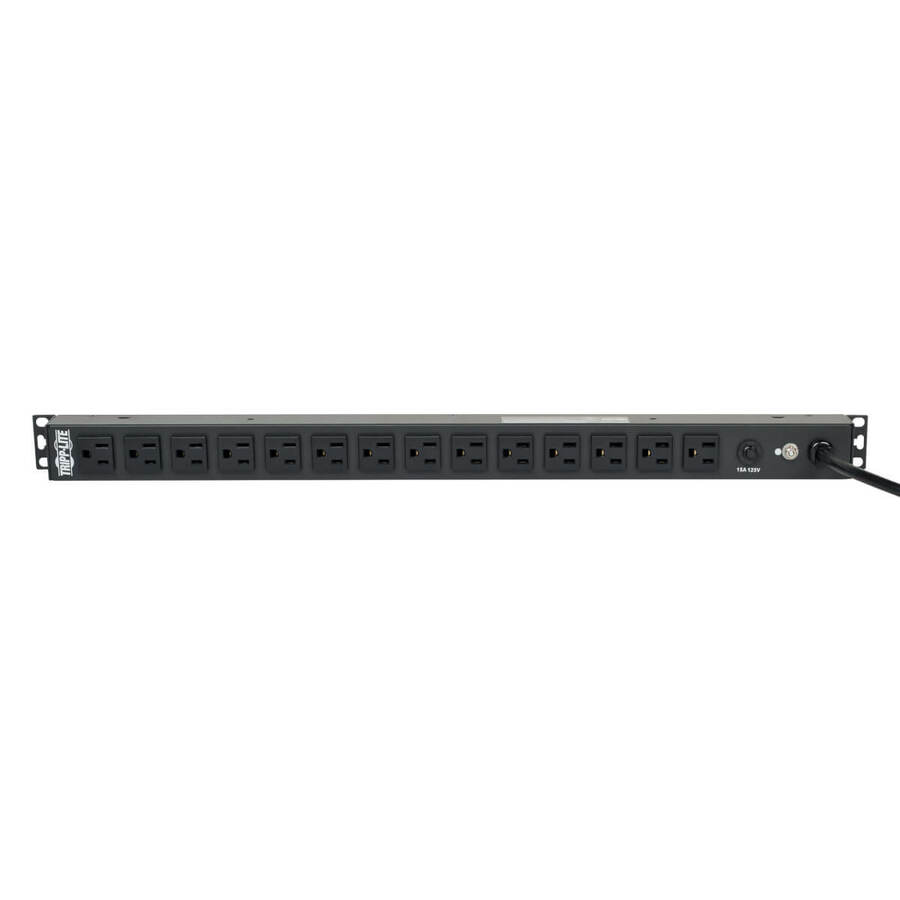

Tripp Lite's PDU1415 AC power distribution unit offers 120 volt, 15 amp capacity in a 24 inch mountable housing. Detachable mounting flanges are configurable for vertical or horizontal power distribution in a variety of applications. Supports 0U vertical mounting in the cable management area of most rack enclosures. Unfiltered electrical pass-through without a power switch makes PDU1415 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 14 NEMA5-15R outlets, 15-ft. AC power cord, 15 amp circuit breaker, grounding lug and rugged all-metal case design.
- 24 in. / 61cm housing
- 14 NEMA 5-15R outlets
- NEMA 5-15P input; 15 ft. / 4.5m line cord
- 0U vertical rackmount installation
- Basic single phase 15A 120V PDU
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 1800 W |
| PDU Type | Basic |
| Receptacle Detail | 14 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal/Vertical |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
