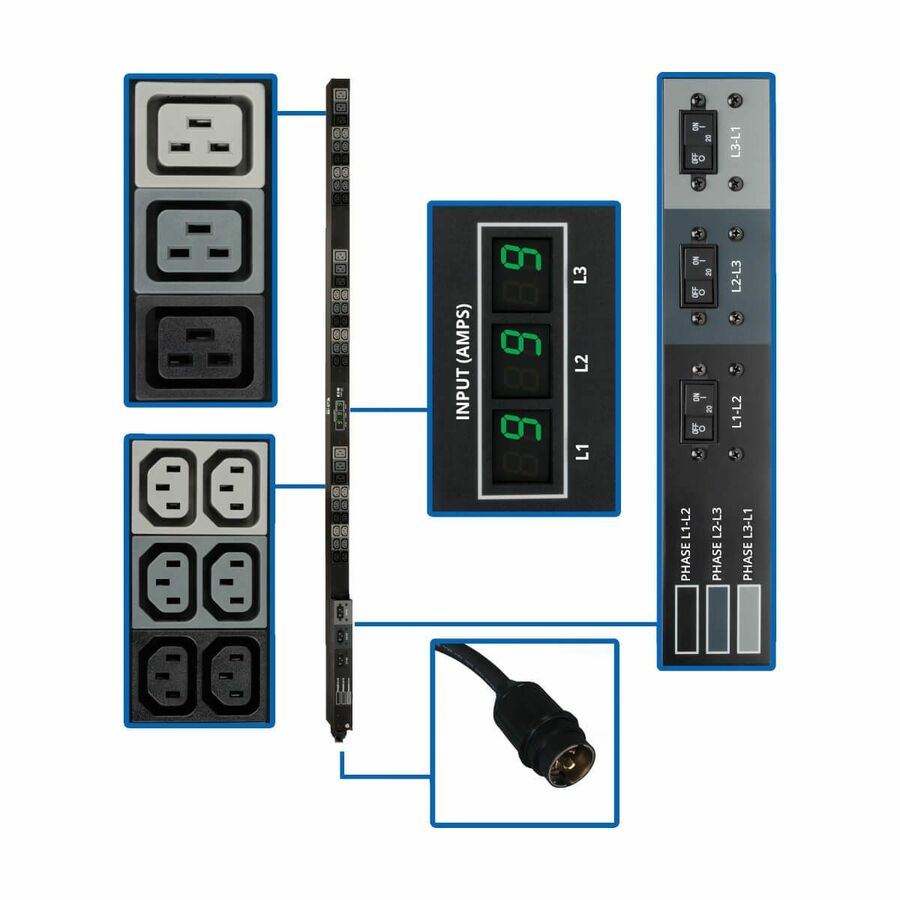

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- Toolless button-mount installation; cord retention brackets included
- 45 208V outlets total (36 C13, 9 C19)
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- Reports load current per-phase via set of 3 built-in current meters
- Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 12.60 kW |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | Hubbell CS8365C |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Metered PDU3MV6H50 45-Outlets PDU |
