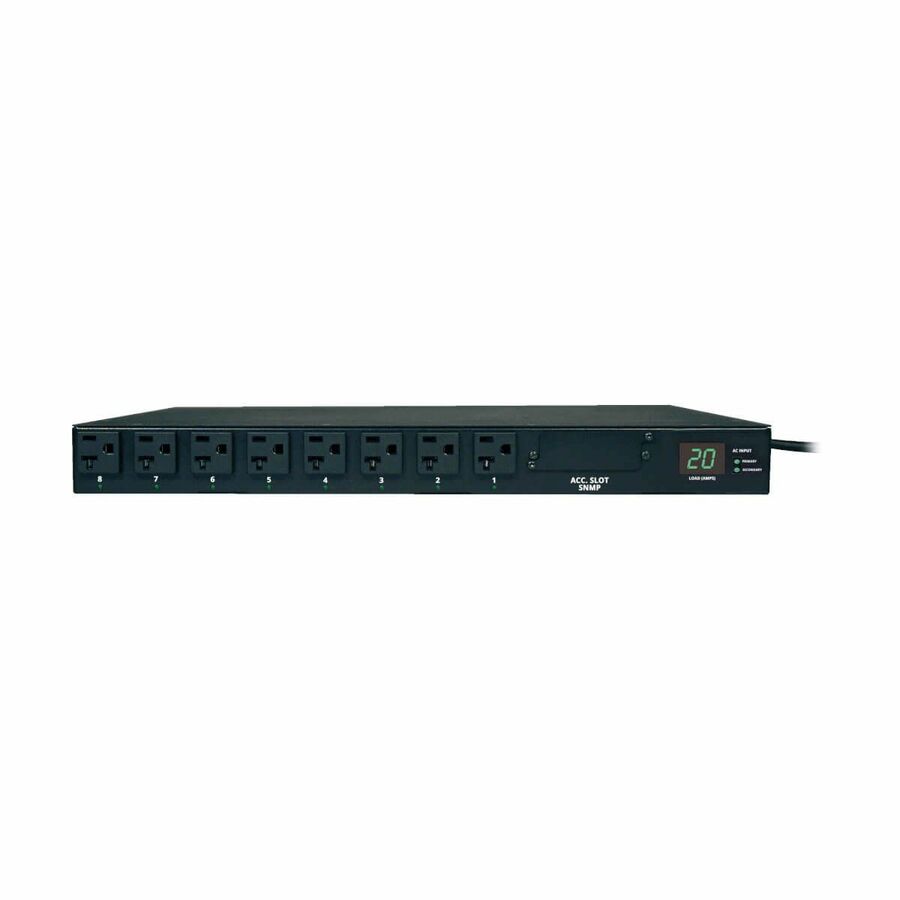

Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
- 1U horizontal rackmount; 2 NEMA L5-20P / 5-20P inputs; 16 5-15/20R outlets
- Separate primary & secondary inputs connect to any two compatible power sources
- Enables redundant A/B power option for single-corded network devices
- Single phase 20A 120V Auto Transfer Switch / ATS PDU
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacle Detail | 16 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Plug/Connector Detail | 2 x NEMA L5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2400 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Number of Cord/Cable | 2 |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332126665 |
| MPN | PDUMH20AT |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
