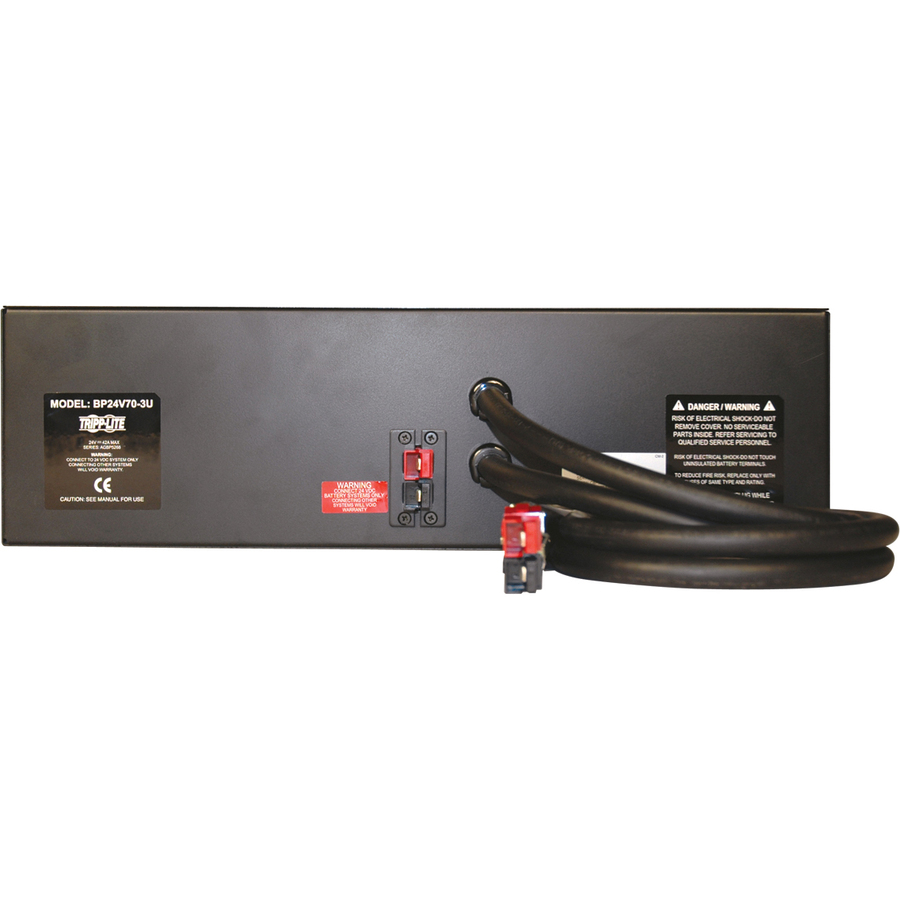

BP24V70-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite systems. Multi-use form factor supports configuration in stacking, upright tower and rackmount applications using only 3 rack spaces (3U). Supports the connection of multiple BP24V70-3U battery packs via built-in daisychain connector. Includes heavy gauge cabling with high current DC connector for simple installation.Compatible UPS Systems - OMNIVS1500XL, OMNIVSINT1500XL, SU750XL, SU750RTXL2U, SU1000XLa, SU1000RTXL2Ua, SUINT1000RTXL2Ua, SMART750RMXL2U and other Tripp Lite UPS systems that specify the use of this battery pack.
- Options for 2 post rackmount and tower installation available
- Supports 3U rackmount installation; 4 post installation accessories included
- Extends the runtime of expandable 24V DC Tripp Lite UPS Systems
- Included daisychain connector supports the addition of multiple compatible external battery packs
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Maximum Battery Life | 6 Year |
| Minimum Battery Life | 4 Year |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Maximum Battery Recharge Time | 4 Hour |
| Output Voltage | 24 V DC |
| Size / Dimensions | |
|---|---|
| Rack Height | 3U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Eaton Corporation |
| Miscellaneous | |
|---|---|
| Product Name | 24V DC External Battery Pack for UPS Systems |
